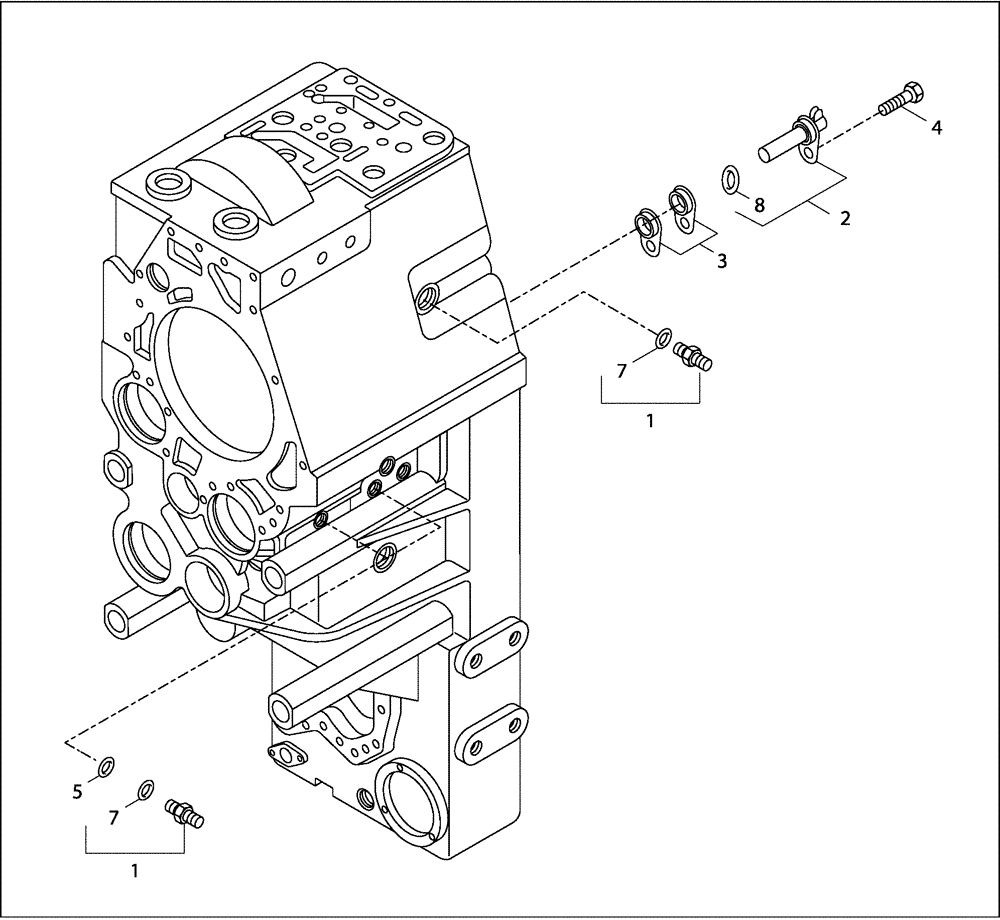

Запчасти Case 330B (18A00000980[001]) - CONNECTIONS - SENSORS (87515111) (03) - Converter / Transmission

1

8603397

SENSOR

INDUCTIVE

3шт.

Include(s) 7

1шт.

2

8900134428

SENSOR

1шт.

Include(s) 8

1шт.

3

8900126965

COVER PLATE

4шт.

4

8900126966

SCREW,M8 x 16mm

M8 x 16

1шт.

5

S300497

SHIM,1.5mm Thk

(M18 x 25)

1шт.

51

S300498

SHIM,1.4mm Thk

(M18 x 25)

1шт.

52

S300499

SHIM,1.2mm Thk

(M18 x 25 )

1шт.

53

S300500

SHIM,1mm Thk

(M18 x 25)

1шт.

54

8900126967

SHIM

1шт.

55

S300502

SHIM,0.5mm Thk

(M18 x 25)

1шт.

56

S300503

SHIM,0.3mm Thk

(M18 x 25)

1шт.

57

S300504

SHIM,0.2mm Thk

(M18 x 25)

1шт.

58

S300505

BLOCK

18 x 25 x 1.6

1шт.

59

S300506

SHIM,1.8mm Thk

(M18 x 25)

1шт.

7

87453989

O-RING

3шт.

8

8603629

O-RING

1шт.
