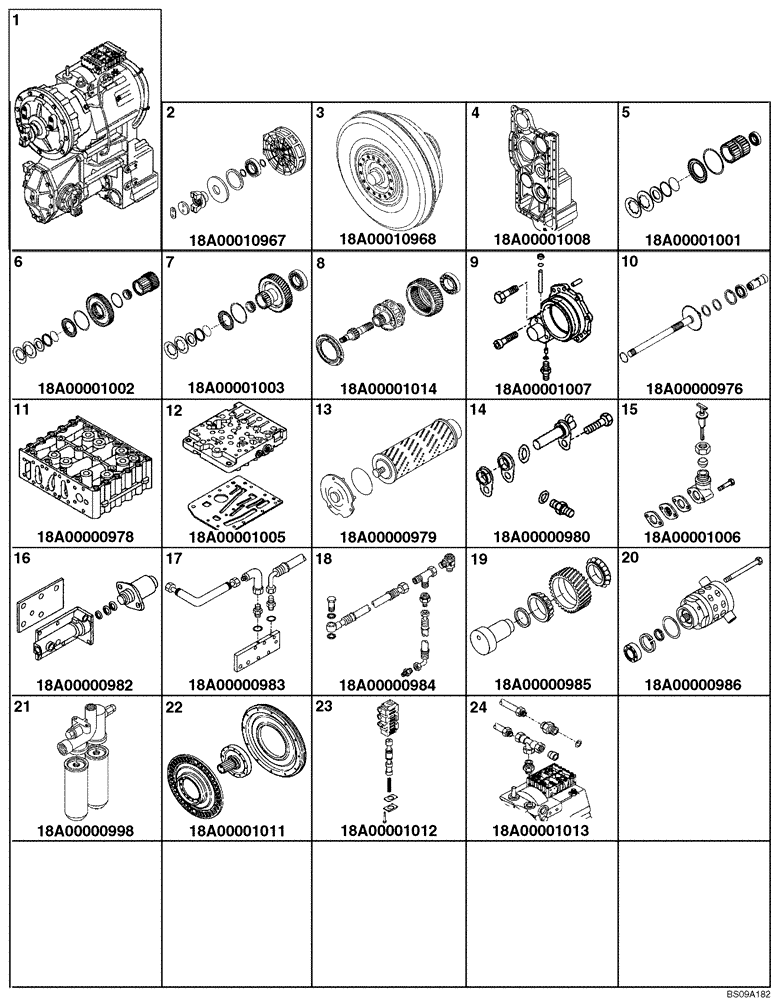

Запчасти Case 330B (18A00000064[001]) - SECTION INDEX, TRANSMISSION ASSY W/RETARDER (P.I.N. HHD0330BN7PG57000 AND AFTER) (89500433731) (03) - Converter / Transmission

1

89500433731

TRANSMISSION

ASSY W/RETARDER; Consists Of Items 2 Thru 24

1шт.

2

NSS

NOT SOLD SEPARAT

Engine Connection (87568752)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00010967 (001) For Service breakdown

1шт.

3

NSS

NOT SOLD SEPARAT

Torque Converter Instal (87450771)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00010968 (001) For Service Breakdown

1шт.

4

NSS

NOT SOLD SEPARAT

Transmission Housing Instal (84169046)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00001008 (001) For Service Breakdown

1шт.

5

NSS

NOT SOLD SEPARAT

Clutch Assy Instal K1/KV (84168078)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00001001 (001) For Service Breakdown

1шт.

6

NSS

NOT SOLD SEPARAT

Clutch Assy Instal K2/KR (84168318)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00001002 (001) For Service Breakdown

1шт.

7

NSS

NOT SOLD SEPARAT

Clutch Assy Instal K3/K4 (84168530)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00001003 (001) For Service Breakdown

1шт.

8

NSS

NOT SOLD SEPARAT

Differential Instal, Gearbox (84186783)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00001014 (001) For Service Breakdown

1шт.

9

NSS

NOT SOLD SEPARAT

Transmission Output (84168963)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00001007 (001) For Service Breakdown

1шт.

10

NSS

NOT SOLD SEPARAT

Power Take-Off (87515098)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000976 (001) For Service Breakdown

1шт.

11

NSS

NOT SOLD SEPARAT

Valve, Gearshift System (87450724)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000978 (001) For Service Breakdown

1шт.

12

NSS

NOT SOLD SEPARAT

Gearshift System (84168873)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00001005 (001) For Service Breakdown

1шт.

13

NSS

NOT SOLD SEPARAT

Filter, Gearbox (87450715)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000979 (001) For Service Breakdown

1шт.

14

NSS

NOT SOLD SEPARAT

Sensors, Transmission (87515111)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000980 (001) For Service Breakdown

1шт.

15

NSS

NOT SOLD SEPARAT

Dipstick Neck Instal (84168935)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00001006 (001) For Service Breakdown

1шт.

16

NSS

NOT SOLD SEPARAT

Clutch Lock-Up Solenoid (87515153)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000982 (001) For Service Breakdown

1шт.

17

NSS

NOT SOLD SEPARAT

Clutch Lock-Up Lines (87450719)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000983 (001) For Service Breakdown

1шт.

18

NSS

NOT SOLD SEPARAT

Shifter Lines, Gearbox (87450720)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000984 (001) For Service Breakdown

1шт.

19

NSS

NOT SOLD SEPARAT

Intermediate Shaft (87515159)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000985 (001) For Service Breakdown

1шт.

20

NSS

NOT SOLD SEPARAT

Steering Pump (87450722)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000986 (001) For Service Breakdown

1шт.

21

NSS

NOT SOLD SEPARAT

Filter Assy / Control Unit (84168088)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000998 (001) For Service Breakdown

1шт.

22

NSS

NOT SOLD SEPARAT

Retarder Parts (84186762)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00001011 (001) For Service Breakdown

1шт.

23

NSS

NOT SOLD SEPARAT

Pressure Regulator, Gearbox (84186780)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00001012 (001) For Service Breakdown

1шт.

24

NSS

NOT SOLD SEPARAT

Oil Lines Instal, Retarder (84186781)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00001013 (001) For Service Breakdown

1шт.
