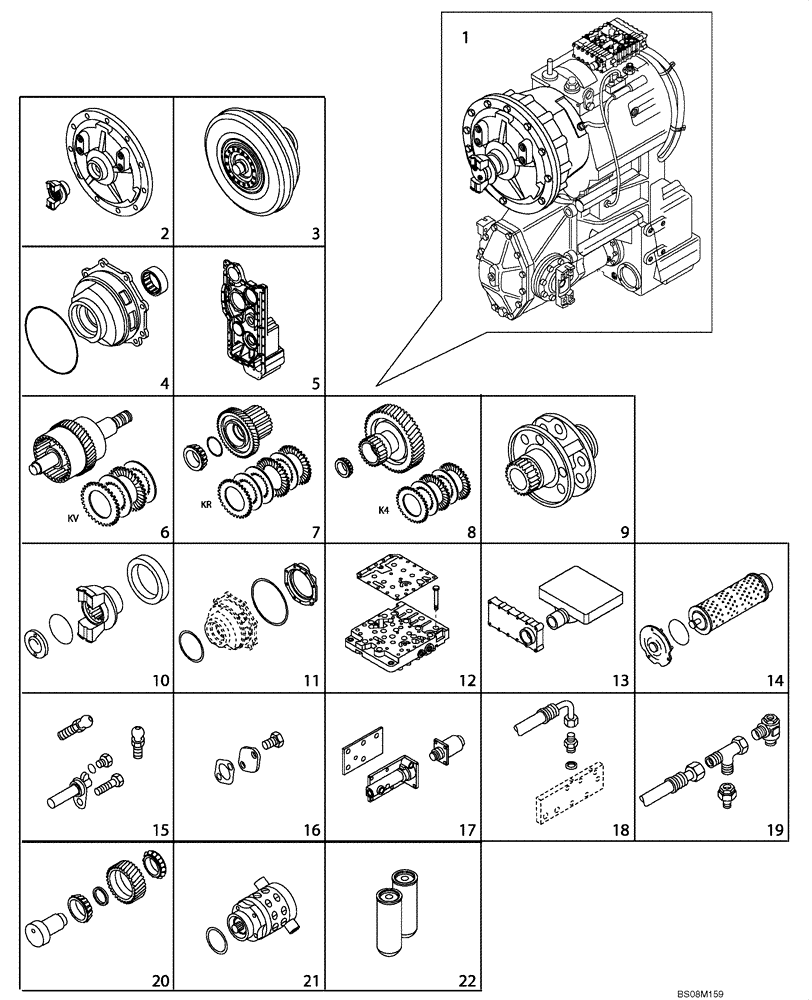

Запчасти Case 330B (18A00000063[001]) - SECTION INDEX, TRANSMISSION ASSY (89500433730) (P.I.N. HHD0330BN7PG57000 AND AFTER) (03) - Converter / Transmission

1

89500433730

TRANSMISSION

Assy; Consists Of Items 2 Thru 22

1шт.

2

NSS

NOT SOLD SEPARAT

Engine Connection (84170077)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00001009 (001) For Service Breakdown

1шт.

3

NSS

NOT SOLD SEPARAT

Converter, Gearbox W/O Retarder (87450703)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000968 (001) For Service Breakdown

1шт.

4

NSS

NOT SOLD SEPARAT

Oil Pump, Gearbox (87450704)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000969 (001) For Service Breakdown

1шт.

5

NSS

NOT SOLD SEPARAT

Transmission Housing (84169046)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00001008 (001) For Service Breakdown

1шт.

6

NSS

NOT SOLD SEPARAT

Clutch Assy K1/KV (84168078)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00001001 (001) For Service Breakdown

1шт.

7

NSS

NOT SOLD SEPARAT

Clutch Assy K2/KR (84168318)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00001002 (001) For Service Breakdown

1шт.

8

NSS

NOT SOLD SEPARAT

Clutch Assy K3/K4 (84168530)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00001003 (001) For Service Breakdown

1шт.

9

NSS

NOT SOLD SEPARAT

Differential (84168635)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00001004 (001) For Service Breakdown

1шт.

10

NSS

NOT SOLD SEPARAT

Output, Transmission (841689663

1шт.

REF

INSTRUCTION

See Figure(s) 18A00001007 (001) For Service Breakdown

1шт.

11

NSS

NOT SOLD SEPARAT

Power Take Off (87515098)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000976 (001) For Service Breakdown

1шт.

12

NSS

NOT SOLD SEPARAT

Gearshift System (84168873)

1шт.

REF

INSTRUCTION

See Figure 18A00001005 (001) For Service Breakdown

1шт.

13

NSS

NOT SOLD SEPARAT

Valve, Gearshft System (87450724)

1шт.

REF

INSTRUCTION

See Figure 18A00000978 (001) For Service Breakdown

1шт.

14

NSS

NOT SOLD SEPARAT

Filter, Gearbox (87450715)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000979 (001) For Service Breakdown

1шт.

15

NSS

NOT SOLD SEPARAT

Connections - Sensors (87515111)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000980 (001) For Service Breakdown

1шт.

16

NSS

NOT SOLD SEPARAT

Dipstick And Neck (84168935)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00001006 (001) For Service Breakdown

1шт.

17

NSS

NOT SOLD SEPARAT

Solenoid (87515153)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000982 (001) For Service Breakdown

1шт.

18

NSS

NOT SOLD SEPARAT

Gearbox Piping (87450719)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000983 (001) For Service Breakdown

1шт.

19

NSS

NOT SOLD SEPARAT

Gearbox Piping (87450720)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000984 (001) For Service Breakdown

1шт.

20

NSS

NOT SOLD SEPARAT

Intermediate Shaft (87515159)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000985 (001) For Service Breakdown

1шт.

21

NSS

NOT SOLD SEPARAT

Steering Pump (87450722)

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000986 (001) For Service Breakdown

1шт.

22

NSS

NOT SOLD SEPARAT

Filter Assy & Control Unit (84168088) See Figure 18A00000998 (001) For Service Breakdown

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000998 (001) For Service Breakdown

1шт.
