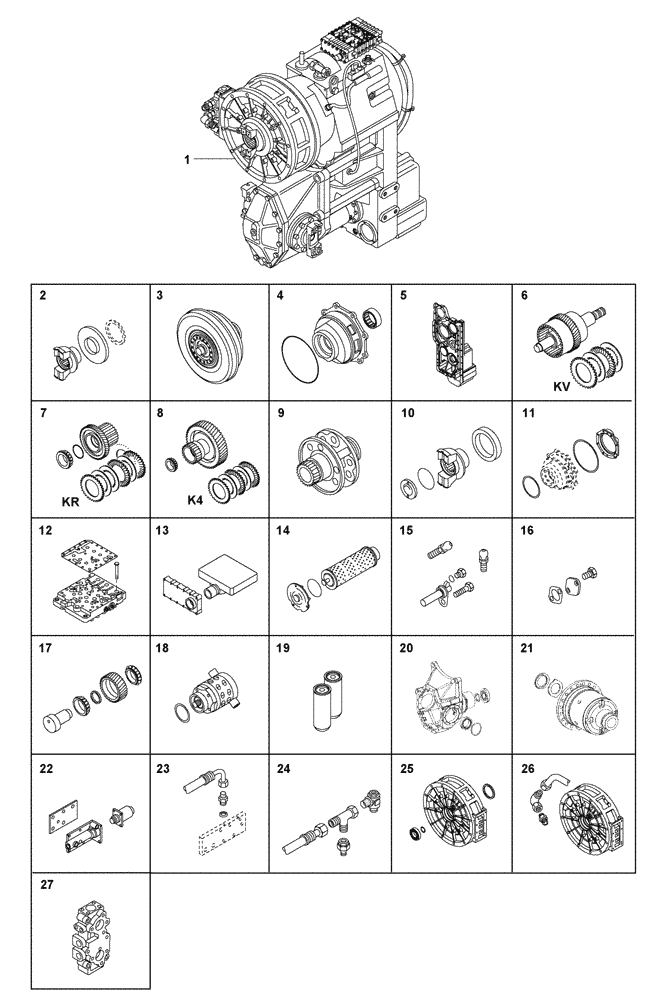

Запчасти Case 330B (18A00000062[001]) - SECTION INDEX, TRANSMISSION ASSY 6WG-260 ZF W/RETARDER (89500415372) (BEFORE P.I.N. HHD0330BN7PG57000) (03) - Converter / Transmission

1

89500415372

TRANSMISSION

Include(s) 2 Thru 27

1шт.

1

89500415372R

REMAN-TRANSMISSION

Remanufactured Transmission, For N.A. only; w/Retarder

1шт.

1

89500415372C

CORE-TRANSMISSION

RETURN NUMBER - For N.A. only

1шт.

2

NSS

NOT SOLD SEPARAT

Engine Drive Plate - 87568752

1шт.

REF

INSTRUCTION

See Figure(s) 18A00010967 (001) For Service Breakdown

1шт.

3

NSS

NOT SOLD SEPARAT

Converter - 87450771

1шт.

REF

INSTRUCTION

See Figure(s) 18A00010968 (001) For Service Breakdown

1шт.

4

NSS

NOT SOLD SEPARAT

Oil Pump - 87450704

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000969 (001) For Service Breakdown

1шт.

5

NSS

NOT SOLD SEPARAT

Housing - 87399794

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000970 (001) For Service Breakdown

1шт.

6

NSS

NOT SOLD SEPARAT

Clutch Assembly K1/KV - 87399844

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000971 (001) For Service Breakdown

1шт.

7

NSS

NOT SOLD SEPARAT

Clutch Assembly K2/KR - 87515021

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000972 (001) For Service Breakdown

1шт.

8

NSS

NOT SOLD SEPARAT

Clutch Assembly K3/K4 - 87515036

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000973 (001) For Service Breakdown

1шт.

9

NSS

NOT SOLD SEPARAT

Differential - 87515040

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000974 (001) For Service Breakdown

1шт.

10

NSS

NOT SOLD SEPARAT

Output Yoke - 87515052

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000975 (001) For Service Breakdown

1шт.

11

NSS

NOT SOLD SEPARAT

Power Take-Off - 87515098

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000976 (001) For Service Breakdown

1шт.

12

NSS

NOT SOLD SEPARAT

Gearshift System - 87515109

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000977 (001) For Service Breakdown

1шт.

13

NSS

NOT SOLD SEPARAT

Gearshift System - 87450724

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000978 (001) For Service Breakdown

1шт.

14

NSS

NOT SOLD SEPARAT

Filter - 87450715

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000979 (001) For Service Breakdown

1шт.

15

NSS

NOT SOLD SEPARAT

Engine Connection Sensors - 87515111

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000980 (001) For Service Breakdown

1шт.

16

NSS

NOT SOLD SEPARAT

Dipstick Deflector - 87515145

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000981 (001) For Service Breakdown

1шт.

17

NSS

NOT SOLD SEPARAT

Solenoid - 87515153

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000982 (001) For Service Breakdown

1шт.

18

NSS

NOT SOLD SEPARAT

Piping - 87450719

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000983 (001) For Service Breakdown

1шт.

19

NSS

NOT SOLD SEPARAT

Piping - 87450720

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000984 (001) For Service Breakdown

1шт.

20

NSS

NOT SOLD SEPARAT

Intermediaite Shaft - 87515159

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000985 (001) For Service Breakdown

1шт.

21

NSS

NOT SOLD SEPARAT

Steering Pump Control - 87450722

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000986 (001) For Service Breakdown

1шт.

22

NSS

NOT SOLD SEPARAT

Filter / Control Unit - 87515165

1шт.

REF

INSTRUCTION

See Figure(s) 18A00010987 (001) For Service Breakdown

1шт.

23

NSS

NOT SOLD SEPARAT

Differential Between The Wheels - 87515415

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000988 (001) For Service Breakdown

1шт.

24

NSS

NOT SOLD SEPARAT

Differential - 87454951

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000989 (001) For Service Breakdown

1шт.

25

NSS

NOT SOLD SEPARAT

No Figure To Reference

1шт.

REF

INSTRUCTION

See Figure(s) For Service Breakdown

1шт.

26

NSS

NOT SOLD SEPARAT

Retarder - 87569657

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000992 (001) For Service Breakdown

1шт.

27

NSS

NOT SOLD SEPARAT

Pression Regular - 87569658; See Figure(s) 18A00000993

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000993 (001) For Service Breakdown

1шт.
