Запчасти Case 330B (18A00000061[001]) - SECTION INDEX, TRANSMISSION ASSY 6WG-260 ZF W/O RETARDER (89500415371) (BEFORE P.I.N. HHD0330BN7PG57000 (03) - Converter / Transmission

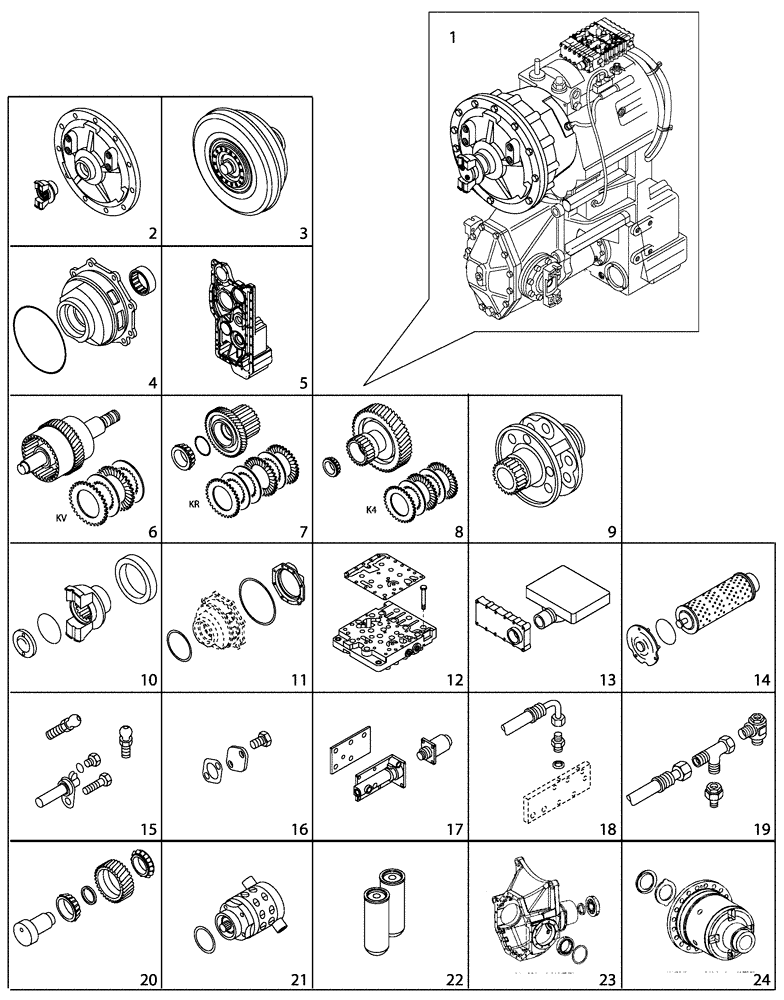

Схема запчастей Case 330B - (18A00000061[001]) - SECTION INDEX, TRANSMISSION ASSY 6WG-260 ZF W/O RETARDER (89500415371) (BEFORE P.I.N. HHD0330BN7PG57000 (03) - Converter / Transmission
6
5
4
3
2
24
23
22
21
20
19
18
17
16
15
13
12
11
10
9
8
7
1

Артикул

Название

Примечание

Количество

1

89500415371

TRANSMISSION

Includes 2 Thru 24

1шт.

1

89500415371R

REMAN-TRANSMISSION

Remanufactured Transmission, For N.A. only, w/o Retarder

1шт.

1

89500415371C

CORE-TRANSMISSION

RETURN NUMBER - For N.A. only

1шт.

2

NSS

NOT SOLD SEPARAT

Engine Drive Plate - 87399628

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000967 (001) For Service Breakdown

1шт.

3

NSS

NOT SOLD SEPARAT

Converter - 87450703

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000968 (001) For Service Breakdown

1шт.

4

NSS

NOT SOLD SEPARAT

Oil Pump - 87450704

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000969 (001) For Service Breakdown

1шт.

5

NSS

NOT SOLD SEPARAT

Housing - 87399794

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000970 (001) For Service Breakdown

1шт.

6

NSS

NOT SOLD SEPARAT

Clutch Assembly K1/KV - 87399844

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000971 (001) For Service Breakdown

1шт.

7

NSS

NOT SOLD SEPARAT

Clutch Assembly K2/KR - 87515021

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000972 (001) For Service Breakdown

1шт.

8

NSS

NOT SOLD SEPARAT

Clutch Assembly K3/K4 - 87515036

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000973 (001) For Service Breakdown

1шт.

9

NSS

NOT SOLD SEPARAT

Differential - 87515040

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000974 (001) For Service Breakdown

1шт.

10

NSS

NOT SOLD SEPARAT

Output Yoke - 87515052

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000975 (001) For Service Breakdown

1шт.

11

NSS

NOT SOLD SEPARAT

Power Take-Off - 87515098

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000976 (001) For Service Breakdown

1шт.

12

NSS

NOT SOLD SEPARAT

Gearshift System - 87515109

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000977 (001) For Service Breakdown

1шт.

13

NSS

NOT SOLD SEPARAT

Gearshift System - 87450724

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000978 (001) For Service Breakdown

1шт.

14

NSS

NOT SOLD SEPARAT

Filter - 87450715

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000979 (001) For Service Breakdown

1шт.

15

NSS

NOT SOLD SEPARAT

Engine Connection Sensors - 87515111

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000980 (001) For Service Breakdown

1шт.

16

NSS

NOT SOLD SEPARAT

Dipstik Deflector - 87515145

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000981 (001) For Service Breakdown

1шт.

17

NSS

NOT SOLD SEPARAT

Solenoid - 87515153

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000982 (001) For Service Breakdown

1шт.

18

NSS

NOT SOLD SEPARAT

Piping - 87450719

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000983 (001) For Service Breakdown

1шт.

19

NSS

NOT SOLD SEPARAT

Piping - 87450720

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000984 (001) For Service Breakdown

1шт.

20

NSS

NOT SOLD SEPARAT

Intermediaite Shaft - 87515159

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000985 (001) For Service Breakdown

1шт.

21

NSS

NOT SOLD SEPARAT

Steering Pump Control - 87450722

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000986 (001) For Service Breakdown

1шт.

22

NSS

NOT SOLD SEPARAT

Filter And Control Unit - 87515165

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000987 (001) For Service Breakdown

1шт.

23

NSS

NOT SOLD SEPARAT

Differential Between The Wheels - 87515415

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000988 (001) For Service Breakdown

1шт.

24

NSS

NOT SOLD SEPARAT

Differential - 87454951

1шт.

REF

INSTRUCTION

See Figure(s) 18A00000989 (001) For Service Breakdown

1шт.

Выбрано товаров: 49
