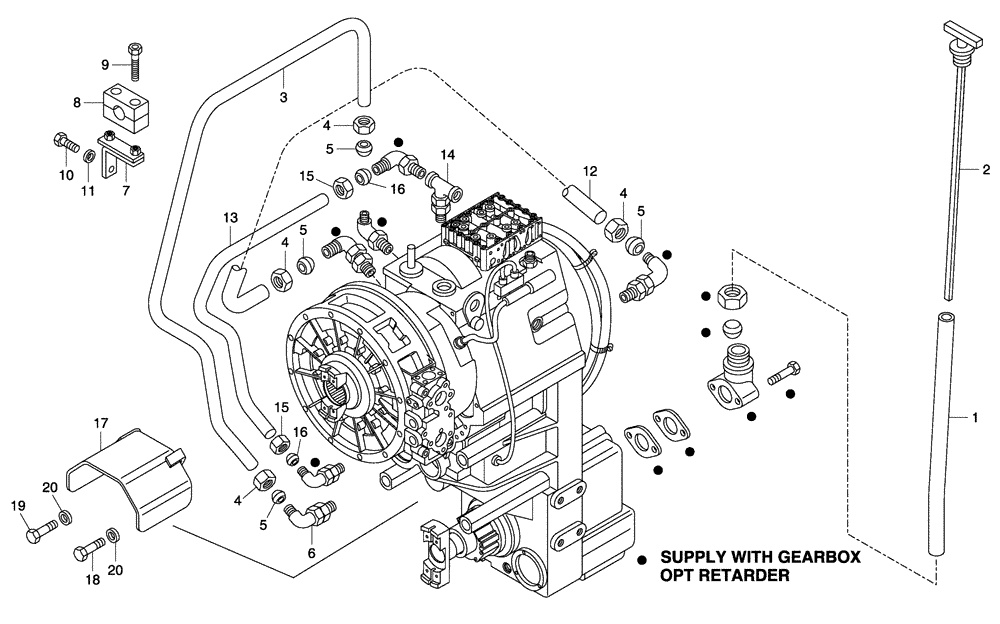

Запчасти Case 330 (16A01010535[01]) - TRANSMISSION - DIPSTICK, TUBE AND SHIELD W RETARDER (87452302) (03) - Converter / Transmission

1

8998192099

PIPE

1шт.

2

89500401127

DIPSTICK

Until PIN: HHD0000280 If Used

1шт.

2

89500407671

DIPSTICK

PIN: HHD0000281 And After

1шт.

3

89500401207

PIPE

1шт.

4

8900194907

NUT

4шт.

5

8900194906

OLIVE

4шт.

6

89500400192

SWIVEL CONNECTION

1шт.

7

89500401209

BRACKET

1шт.

8

8900194914

CLAMP BRACKET

1шт.

9

8900108856

BOLT

M6 x 50

2шт.

10

8900036278

BOLT

M6 x 30

1шт.

11

8900005515

WASHER

1шт.

12

89500401213

PIPE

1шт.

13

89500401217

PIPE

1шт.

14

8900183047

HYD CONNECTOR

1шт.

15

8900169803

NUT

2шт.

16

8900169804

SLEEVE

2шт.

17

89500407041

SHIELD

PIN: HHD0000281 And After

1шт.

18

8900010081

BOLT

M10 x 60 x 1.5; PIN: HHD000281 And After

2шт.

19

8900005670

BOLT

M10 x 70; PIN: HHD000281 And After

2шт.

20

8900141413

WASHER

10 x 20 x 2.6; PIN: HHD0000281 And After

4шт.
