(16A00010535[01]) - TRANSMISSION - DIPSTICK, TUBE AND SHIELD W/O RETARDER (87452301)

Запчасти Case 330 (16A00010535[01]) - TRANSMISSION - DIPSTICK, TUBE AND SHIELD W/O RETARDER (87452301) (03) - Converter / Transmission

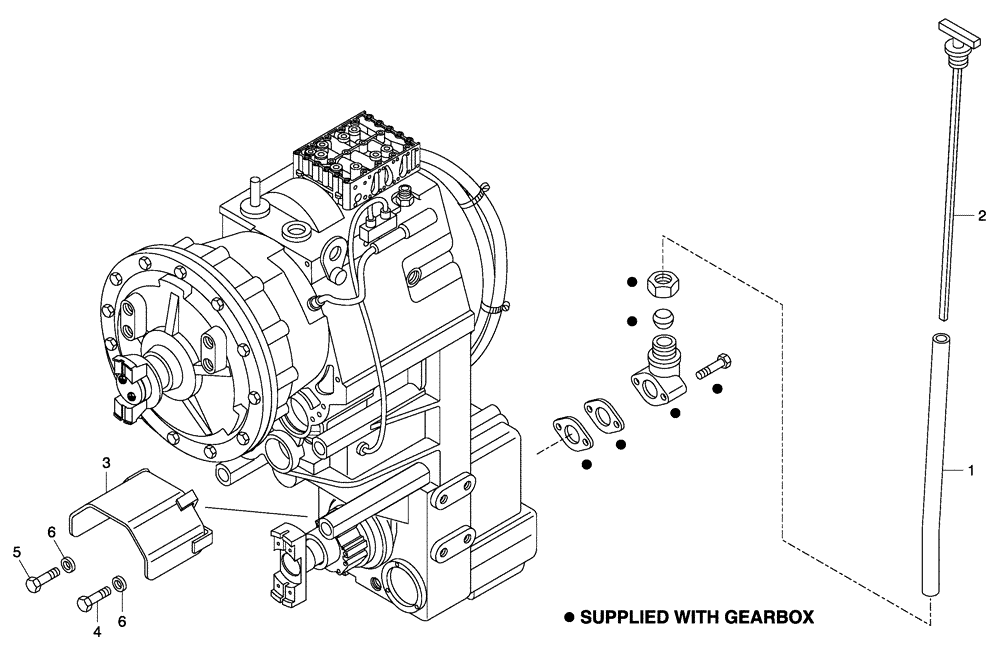

Схема запчастей Case 330 - (16A00010535[01]) - TRANSMISSION - DIPSTICK, TUBE AND SHIELD W/O RETARDER (87452301) (03) - Converter / Transmission
3
4
5
6
1
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

8998192099

PIPE

1шт.

2

89500401127

DIPSTICK

Until PIN: HHD0000280 If Used

1шт.

2

89500407671

DIPSTICK

PIN: HHD0000281 And After

1шт.

3

89500407041

SHIELD

PIN: HHD0000281 And After

1шт.

4

8900010081

BOLT

M10 x 60 x 1.5; PIN: HHD0000281 And After

2шт.

5

8900005670

BOLT

M10 x 70; PIN: HHD0000281 And After

2шт.

6

8900141413

WASHER

10 x 20 x 2.6; PIN: HHD0000281 And After

4шт.
