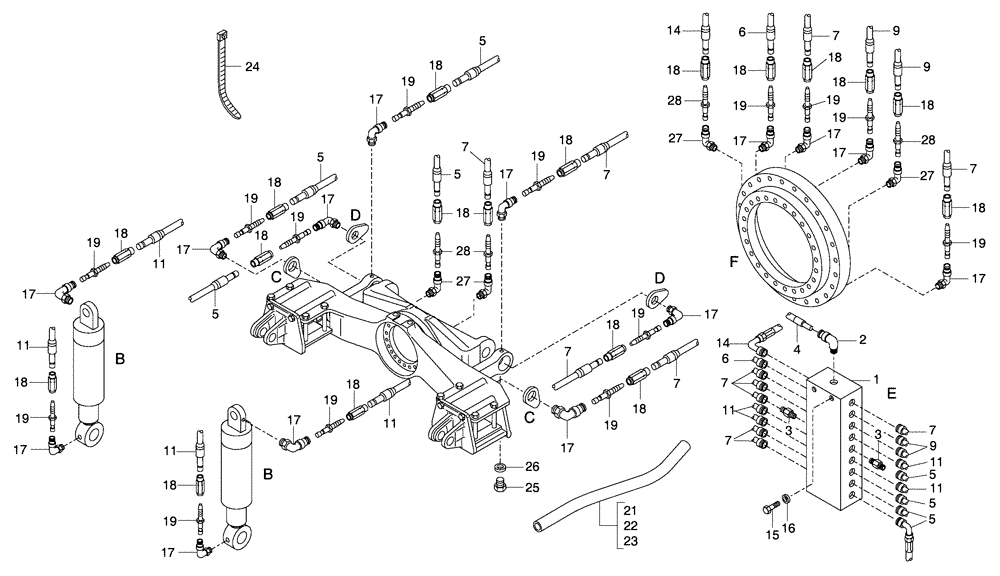

Запчасти Case 330 (94A01010515[01]) - AUTOMATIC GREASING SYSTEM - TELAIO ANTERIORE - OPTION (19) - OPTIONS

1

8900190689

CONTROL VALVE

1шт.

2

8900190690

HYD CONNECTOR

1шт.

3

8900190691

HYDRAULIC VALVE

18шт.

4

8900190776

FLEXIBLE HOSE

1шт.

See Page : 94A00010515 Ref. 8

1шт.

5

8900190763

FLEXIBLE HOSE

Lg 2000mm

4шт.

6

8900190762

FLEXIBLE HOSE

Lg 1900mm

1шт.

7

8900190761

FLEXIBLE HOSE

Lg 1700mm

6шт.

9

8900190760

FLEXIBLE HOSE

Lg 1400mm

2шт.

11

8900190767

FLEXIBLE HOSE

Lg 3000mm

4шт.

14

8900190764

FLEXIBLE HOSE

Lg 2100mm

1шт.

15

8900010369

BOLT

M6 x 40

2шт.

16

8900955275

LOCK WASHER

2шт.

17

8900190693

HYD CONNECTOR

16шт.

18

8900190694

BUSHING

18шт.

19

8900190695

HYD CONNECTOR

16шт.

21

89500405922

FLEXIBLE HOSE

Lg 600mm

1шт.

22

89500405923

FLEXIBLE HOSE

Lg 850mm

1шт.

23

89500405924

FLEXIBLE HOSE

Lg 1300mm

1шт.

24

8900046313

COLLAR

1шт.

25

8900194277

PLUG

2шт.

26

8900115474

COPPER SEAL

2шт.

27

8998197808

HYD CONNECTOR

2шт.

28

8900190696

HYD CONNECTOR

2шт.
