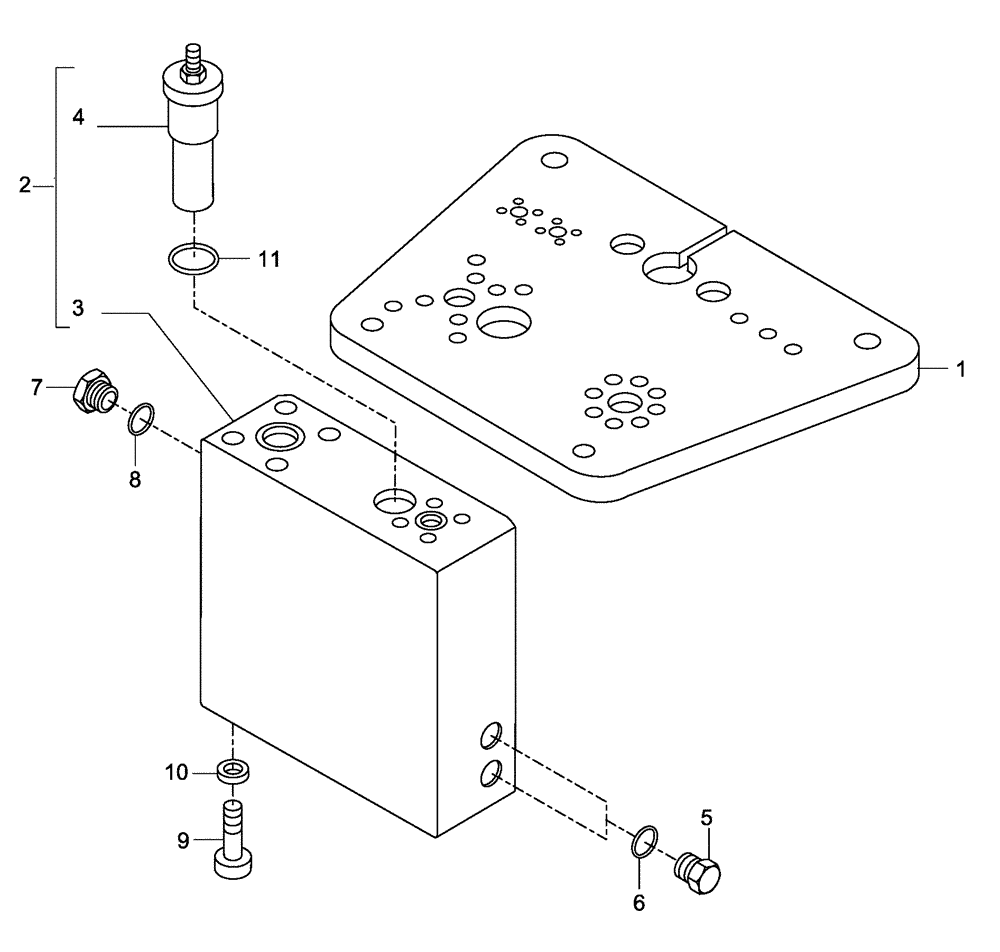

Запчасти Case 330 (72A00010705[02]) - DUMPING SYSTEM - UNIONS UNIT (19) - OPTIONS

1

89500406552

PLATE

1шт.

2

89500403856

BLOCK

Assy

1шт.

Consists of ref : 3, 4

1шт.

3

8960750023

BLOCK

Counter Balance Valve; Not Serviced Separately, Must Order 89500403856 Assembly

1шт.

4

8960700050

HYDRAULIC VALVE

1шт.

Consists of ref : 11

1шт.

5

8900190825

PLUG

2шт.

6

8900005743

SEALING RING

SEALRING

2шт.

7

8900190826

PLUG

1шт.

8

8900005720

SEALING RING

SEALRING

1шт.

9

8900190833

BOLT

M10 x 140

8шт.

10

8960530224

SHIM

8шт.

11

8900133414

SEAL KIT

1шт.
