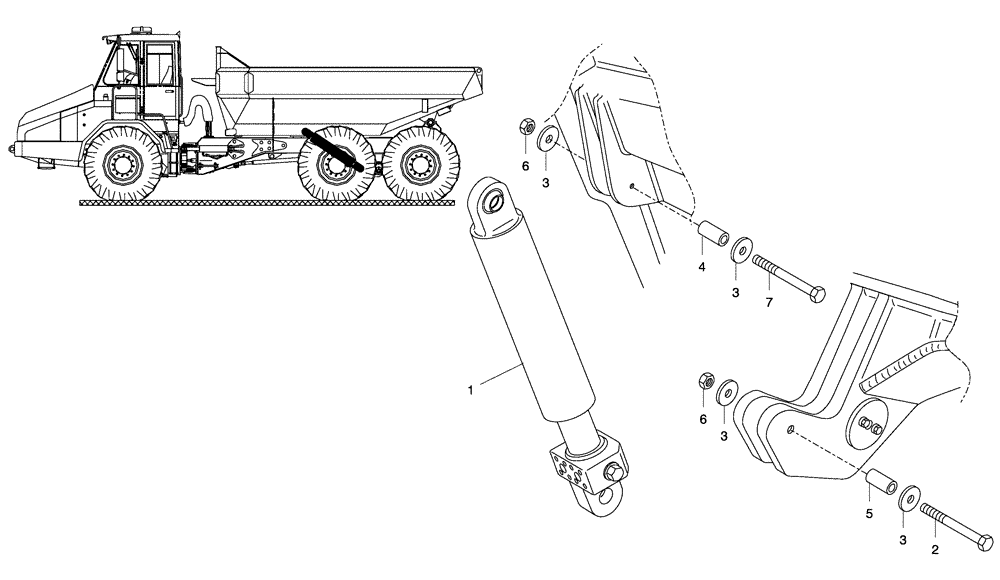

Запчасти Case 330 (72A00000708[01]) - DUMPING SYSTEM - HOIST CYLINDER INSTALLATION (87442880) (19) - OPTIONS

1

8900195663

CYLINDER

See Figure 72A00000708A(01)

2шт.

2

8900127559

STUD

M12 x 1.75 x 160

2шт.

3

8960030021

SPACER

DIA.12

8шт.

4

8960530076

PIN

2шт.

5

8960530070

PIN,50mm OD x 129mm L

2шт.

6

8900160490

NUT

M12

4шт.

7

8900124681

BOLT

M12 x 130; Replaces 8900173597 Bolt M12 x 1.75 x 140 Used On Some Models

2шт.
