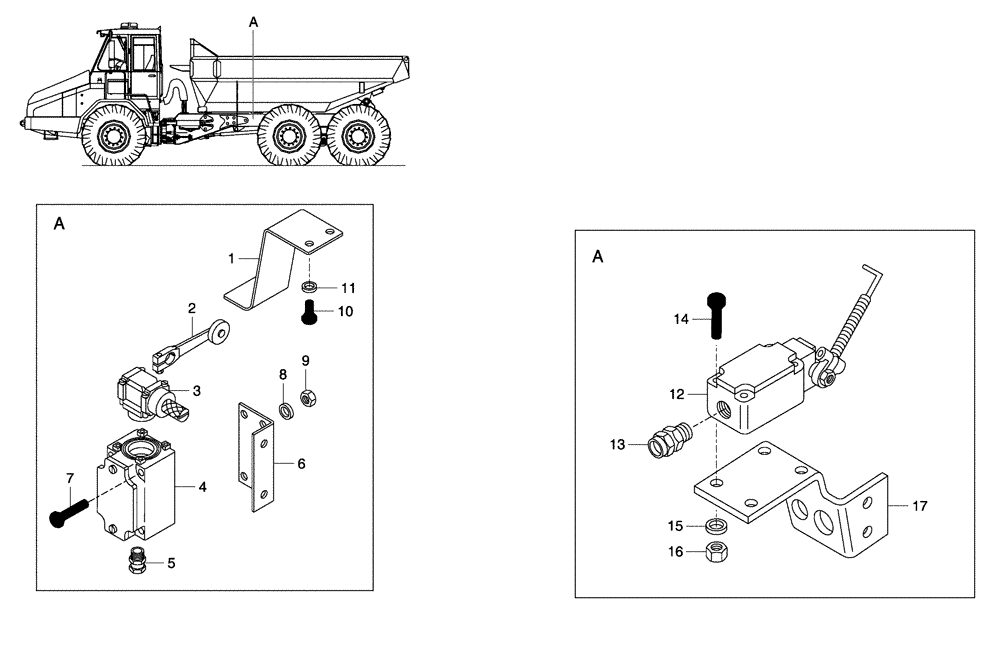

Запчасти Case 330 (67A00021289[01]) - VARIOUS ELECTRICAL EQUIPMENTS (13) - Electrical System / Decals

1

8998197732

BRACKET

1шт.

Serial Number : Until HHD0000274

1шт.

2

8900046703

LEVER

1шт.

Serial Number : Until HHD0000274

1шт.

3

8900168167

SOLENOID VALVE

1шт.

Serial Number : Until HHD0000274

1шт.

4

8900168169

SWITCH

1шт.

Serial Number : Until HHD0000274

1шт.

5

8900046704

GROMMET

1шт.

Serial Number : Until HHD0000274

1шт.

6

8998197563

BRACKET

1шт.

Serial Number : Until HHD0000274

1шт.

7

8900154886

BOLT

M5 x 60

4шт.

Serial Number : Until HHD0000274

1шт.

8

8917101334

SPRING WASHER

4шт.

Serial Number : Until HHD0000274

1шт.

9

8900140412

NUT

M5

4шт.

Serial Number : Until HHD0000274

1шт.

10

8900140879

BOLT,M8 x 25mm

M8 x 25

2шт.

Serial Number : Until HHD0000274

1шт.

11

8900101776

LOCK WASHER

2шт.

Serial Number : Until HHD0000274

1шт.

12

89500409566

LEVER

1шт.

Serial Number : HHD0000300 And After

1шт.

13

89500409567

LEVER

1шт.

Serial Number : HHD0000300 And After

1шт.

14

8916688634

BOLT,M5 x 50mm

M5 x 50

4шт.

Serial Number : HHD0000300 And After

1шт.

15

8917101334

SPRING WASHER

4шт.

Serial Number : HHD0000300 And After

1шт.

16

8900140412

NUT

M5

4шт.

Serial Number : HHD0000300 And After

1шт.

17

89500402910

BRACKET

1шт.

Serial Number : HHD0000300 And After

1шт.
