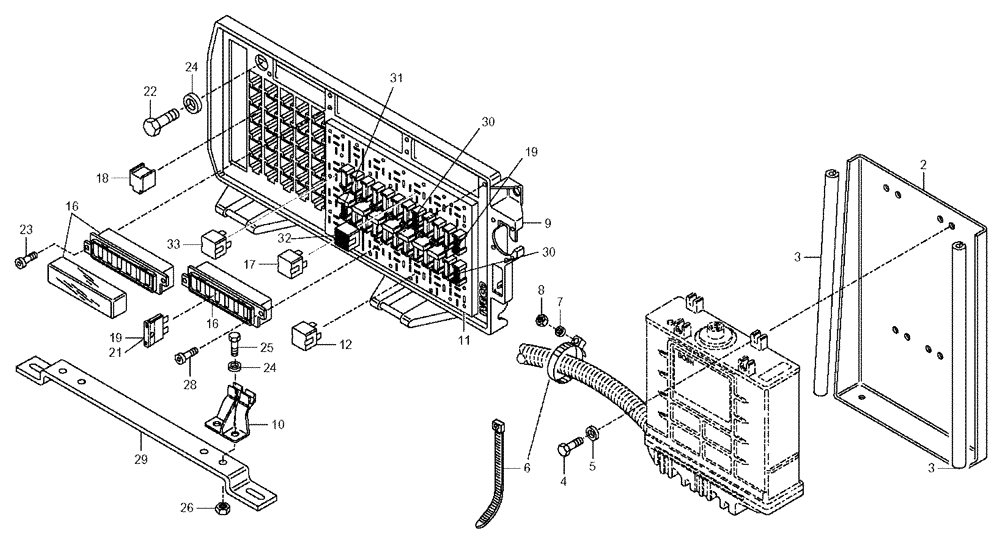

Запчасти Case 330 (67A00011255[01]) - VARIOUS ELECTRICAL EQUIPMENTS (13) - Electrical System / Decals

2

8900127358

PLATE

1шт.

3

8900095121

RUBBER WEATHERSTRIP

2шт.

4

8916688224

BOLT

M5 x 30

4шт.

5

8917128534

LOCK WASHER

5 x 14

4шт.

6

8900184223

HOSE CLAMP

1шт.

7

8900121099

WASHER

1шт.

8

8900033262

NUT

M5

1шт.

9

8900117361

SUPPORT

1шт.

10

8900117362

BRACKET

2шт.

11

8900114206

BODY

1шт.

12

8900105639

RELAY

24V-10/20A (Intermittent Wiper, Park Brake, Ejector, Stop Lights)

3шт.

16

8900115162

FUSE BOX

2шт.

17

8900102609

RELAY

24V-20A (Headlamps, Main/Dipped Beam Light, Flashing, Front Headlights, Horn)

5шт.

18

8900116885

SWITCH, REMOTE CONTR

24V

6шт.

19

8900112438

FUSE,7.5amp

7.5A

2шт.

21

8900169021

FUSE,10amp

10A

1шт.

22

8917032477

BOLT

M6X10

6шт.

23

8900110238

SCREW

4.8 x 19

2шт.

24

8900120058

COLLAR

10шт.

25

8900140610

BOLT

M6X20

4шт.

26

8900125009

NUT

M6

4шт.

28

8900175539

SCREW

4.2X13

2шт.

29

8900127359

PLATE

1шт.

30

8900124067

FUSE

2шт.

31

8900112437

FUSE,5amp

1шт.

32

8900124167

FLASHER UNIT

1шт.

33

8900140111

SWITCH, REMOTE CONTR

(Ignition)

1шт.
