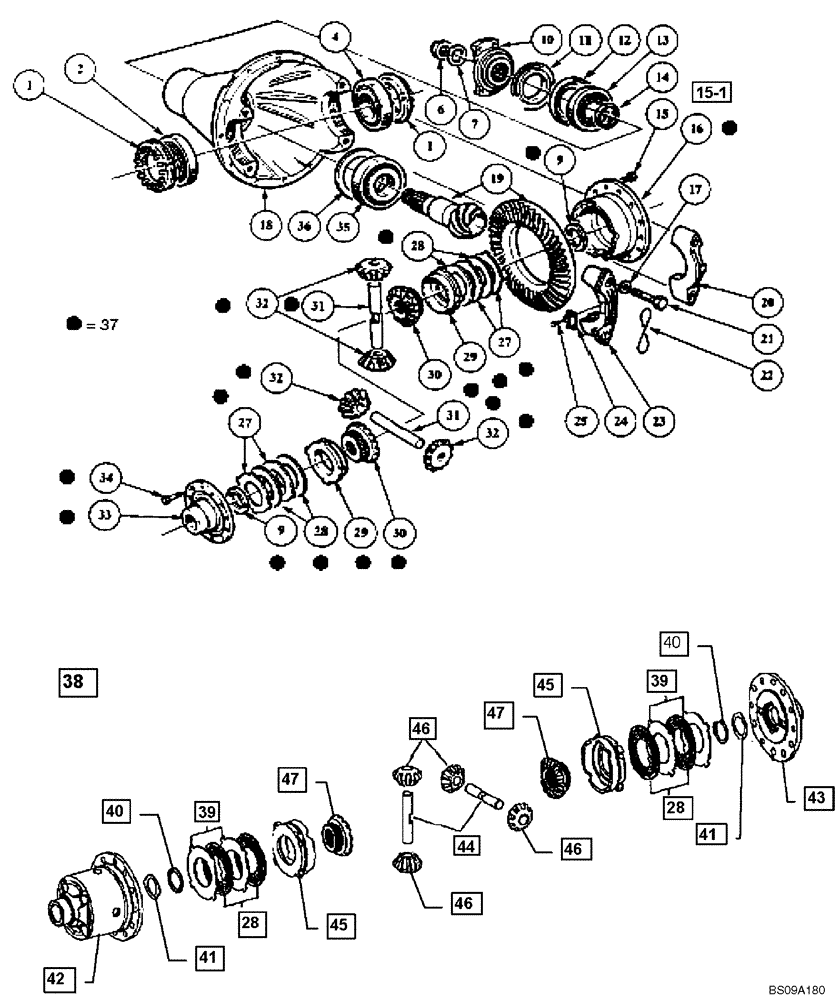

Запчасти Case 330 (33A00020670[02]) - REAR AXLE - DIFFERENTIAL (8900127375) (11) - AXLES/WHEELS

1

8963100000

RING NUT

2шт.

2

8603225

ROLLER BEARING,70mm ID x 125mm OD x 41mm W

1шт.

4

8963100003

BEARING

1шт.

6

8605616

NUT

1шт.

7

8603248

WASHER,36mm ID x 64.6mm OD x 5.8mm Thk

1шт.

9

8900130353

THRUST WASHER

2шт.

9-1

8900130354

THRUST WASHER

4.0 mm

2шт.

10

8963100009

FLANGE

1шт.

11

8963100010

COVER

1шт.

12

8963100011

OIL SEAL

1шт.

13

8963100012

BEARING,50.8mm ID x 123.83mm OD x 36.51mm W

1шт.

14

8603244

SPACER,9.40 mm

9.4 mm

1шт.

14-1

8603240

SPACER,8.90 mm

8.9 mm

1шт.

14-2

8603789

SPACER,8.70 mm

8.7 mm

1шт.

14-3

8603794

SPACER,8.60mm

8.6 mm

1шт.

14-4

8603241

SPACER,9.10 mm

9.1 mm

1шт.

14-5

8603792

SPACER,8.40 mm

8.5 mm

1шт.

14-6

8603243

SPACER,9.30 mm

9.3 mm

1шт.

14-7

8603239

SPACER,8.80 mm

8.8 mm

1шт.

14-8

8603793

SPACER,8.50 mm

8.6 mm

1шт.

14-9

8603791

SPACER,8.30 mm

8.4 mm

1шт.

14-10

8603242

WASHER,9.20 mm

9.2 mm

1шт.

15

8963100014

SCREW

Use With Item 37

12шт.

15-1

87548211

SCREW

Use with Item 38

12шт.

16

8963100015

BOX

Housing; No Longer Available Service With Item 38

1шт.

17

NSS

NOT SOLD SEPARAT

4шт.

18

8963100017

HOUSING

Include(s) Items 17, 20, 21, 22, And 23

1шт.

19

8900125443

BEVEL GEAR

1шт.

20

NSS

NOT SOLD SEPARAT

1шт.

21

NSS

NOT SOLD SEPARAT

4шт.

22

NSS

NOT SOLD SEPARAT

1шт.

23

NSS

NOT SOLD SEPARAT

1шт.

24

8963100023

LOCKING RING

2шт.

25

336199

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

4шт.

27

8900125544

DEFLECTOR

3.0 mm

4шт.

27-1

8900125545

DEFLECTOR

3.1 mm

4шт.

27-2

8963100137

DEFLECTOR

2.9 mm

4шт.

28

8603203

PLATE

Was 8963100027 Deflector

4шт.

29

8963100028

SHIM

Part is 44.9mm thick with 4 tabs at 19.85mm wide

2шт.

30

8963100029

GEAR

Axle Bever Gear

2шт.

31

8963100030

PIN

Pinion Gear Shaft

2шт.

32

8603204

PINION

Differential Bever Gear

4шт.

33

8963100032

COVER

1шт.

34

8963100033

SCREW

12шт.

35

8963100034

BEARING,61.91mm ID x 110mm OD x 22mm W

1шт.

36

8900128670

WASHER

0.8 mm

1шт.

36-1

8900128671

WASHER

0.9 mm

1шт.

36-2

8900128672

WASHER

1.0 mm

1шт.

36-3

8900125430

WASHER

0.25 mm

1шт.

36-4

8900125431

WASHER

0.1 mm

1шт.

36-5

8963100035

WASHER

0.5 mm

1шт.

36-6

8900128669

WASHER

0.7 mm

1шт.

37

8900130355

DIFFERENTIAL

Include(s) Items 9, 16, 27, 28, 29, 30, 31, 32, 33, And 34

1шт.

38

87548216

DIFFERENTIAL

Limited Slip Include(s) Items 28, 39, 40, 41, 42, 43, 44, 45, 46, And 47; Replaces 8900130355 Differential

1шт.

39

87521431

PLATE

2.9 mm

4шт.

39

87521432

PLATE

3.0 mm

4шт.

39

87521433

CLUTCH PLATE

3.1 mm

4шт.

40

8603596

WASHER

2шт.

41

8603597

SHIM

2шт.

42

87548217

HOUSING

1шт.

43

87548218

COVER

1шт.

44

8603600

SHAFT

2шт.

45

8603601

DIVIDER

Part is 47mm thick with 4 tabs at 17.9mm wide

2шт.

46

87521434

DIFFERENTIAL GEAR

4шт.

47

87548222

GEAR

2шт.
