(32A00010052[01]) - INTERMEDIATE AXLE (87442779)

Запчасти Case 330 (32A00010052[01]) - INTERMEDIATE AXLE (87442779) (11) - AXLES/WHEELS

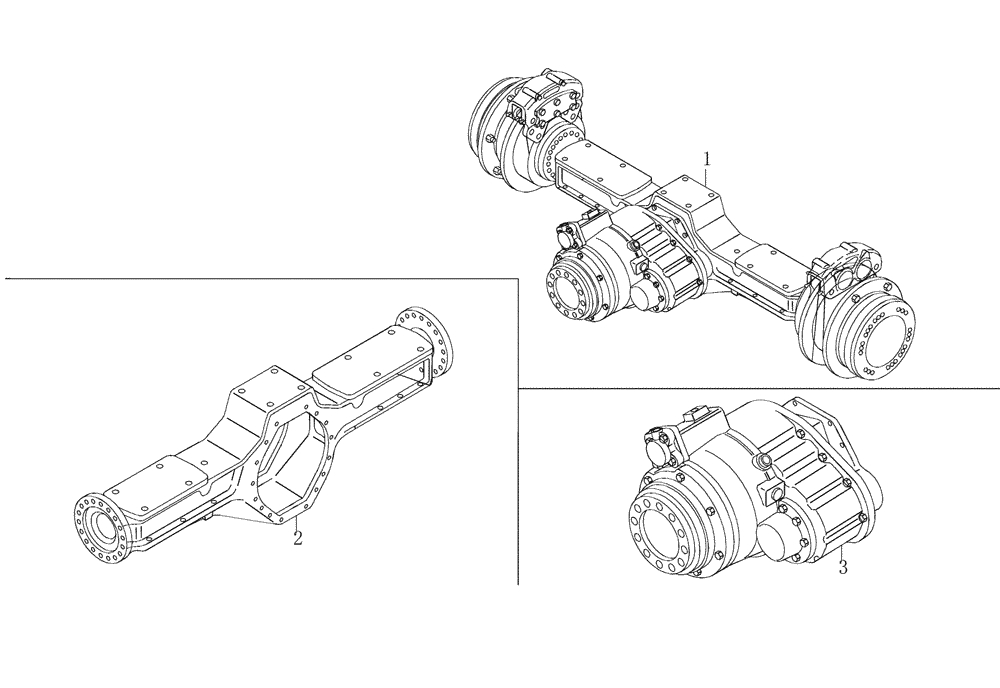

Схема запчастей Case 330 - (32A00010052[01]) - INTERMEDIATE AXLE (87442779) (11) - AXLES/WHEELS
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

8900193894

AXLE

Intermediare If Used

1шт.

Serial Number : Until HDD0000242, Include : 2, 3, See Page : 32A00020583, 32A00010586

1шт.

1

89500404753

AXLE

Intermediare; If Used

1шт.

Serial Number : HHD0000243To HDD0000405, Include; 2, 3. See Page : 32A00010584, 32A00010586 And 32A00020583

1шт.

2

REF

INSTRUCTION

Housing

1шт.

See Page : 32A00020583 01 For Serial Number : Until HHD0000242, See Page 32A00020583 02 For Serial Number : HHD0000243 And After

1шт.

3

8900129022

DIFFERENTIAL ASSY

1шт.

See Page : 32A00010584

1шт.
