(53A00020543[01]) - WINDSHIELD WASHER - FRONT WINDSCREEN WIPER (87442843)

Запчасти Case 330 (53A00020543[01]) - WINDSHIELD WASHER - FRONT WINDSCREEN WIPER (87442843) (10) - Cab/Cowlings

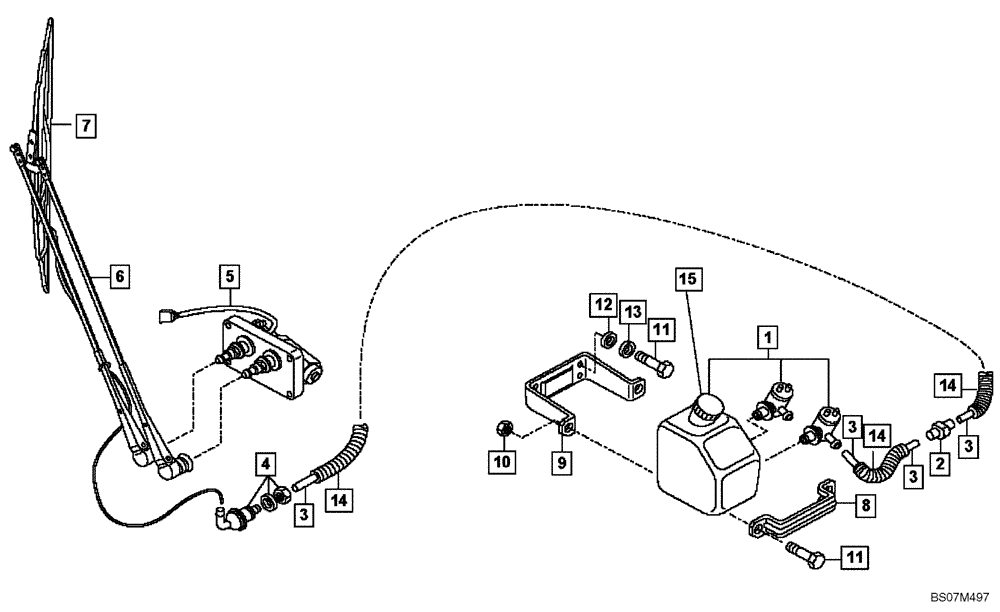

Схема запчастей Case 330 - (53A00020543[01]) - WINDSHIELD WASHER - FRONT WINDSCREEN WIPER (87442843) (10) - Cab/Cowlings
4
14
15
3
2
1
5
10
14
3
8
9
11
14
13
6
3
11
3
7
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

8900195431

RESERVOIR, WINDSHIEL

1шт.

2

8900195432

HYDRAULIC VALVE

2шт.

3

8900095169

HOSE

1шт.

4

8900127250

HYD CONNECTOR

1шт.

5

8900127244

WIPER MOTOR

CENTER

1шт.

5

8900127244R

REMAN-WIPER MOTOR

330 ARTICULATED TRUCK (300HP - ZF260) (NORTH AMERICA), CENTER (4/03-)

1шт.

5

8900127244C

CORE-WIPER MOTOR

Return Number

1шт.

6

8900127239

WIPER ARM

1шт.

8998340707

HOLDER

Wiper Arm Extension

1шт.

7

8900127240

WIPER BLADE

1шт.

8

8900113951

BRACKET

1шт.

9

8900174974

SUPPORT

1шт.

10

8917512731

LOCK NUT

Replaces 8900101322 Nut S.L. Used On Some Models

2шт.

11

8900140610

BOLT

6шт.

12

8900141689

COLLAR

COLLAR Replaces 8900103132 Washer, Spring Used On Some Models

4шт.

13

8900140614

WASHER

M6; Replaces 8900140731 Washer, Flat

4шт.

14

8900095153

FLEXIBLE SHEATH

1шт.

15

8998340606

CAP

PAN

1шт.
