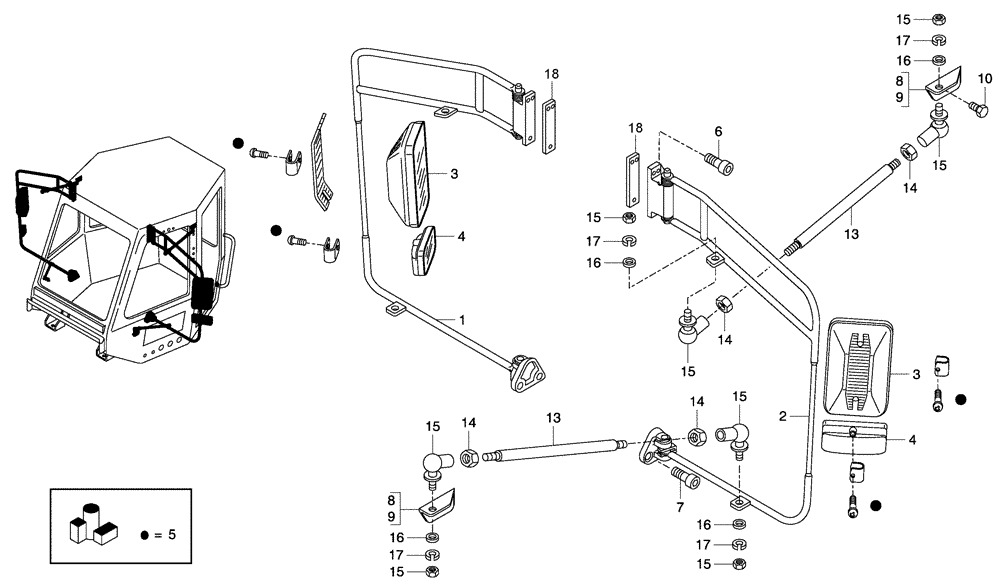

Запчасти Case 330 (51A00021113[02]) - ROPS CAP - EXTERNAL DRIVING MIRRORS (10) - Cab/Cowlings

1

8900195487

BRACKET

1шт.

Right

1шт.

2

8900195488

BRACKET

1шт.

Left

1шт.

3

8900116834

REAR VIEW MIRROR

2шт.

4

8900116837

REAR VIEW MIRROR

1шт.

5

8900116878

KIT

1шт.

6

8916690577

BOLT,M8 x 20mm

M8 x 20

6шт.

7

8900127353

BOLT

M6 x 20

4шт.

8

89500400417

BRACKET

2шт.

9

89500400418

BRACKET

2шт.

10

8900119056

SCREW

M6 x 16

8шт.

Serial Number : HHD0000202, HHD0000203, HHD0000205 And After

1шт.

11

8917094677

WASHER

8шт.

Serial Number : HHD0000202, HHD0000203, HHD0000205 And After

1шт.

12

8900955275

LOCK WASHER

8шт.

Serial Number : HHD0000202, HHD0000203, HHD0000205 And After

1шт.

13

89500400454

TIE-ROD

4шт.

Serial Number : HHD0000202, HHD0000203, HHD0000205 And After

1шт.

14

8900113178

NUT

M8

8шт.

Serial Number : HHD0000202, HHD0000203, HHD0000205 And After

1шт.

15

8900178860

BALL JOINT

8шт.

Serial Number : HHD0000202, HHD0000203, HHD0000205 And After

1шт.

16

8900002084

WASHER

8шт.

Serial Number : HHD0000202, HHD0000203, HHD0000205 And After

1шт.

17

8900956220

LOCK WASHER

8шт.

Serial Number : HHD0000202, HHD0000203, HHD0000205 And After

1шт.

18

8998340162

BRACKET

2шт.
