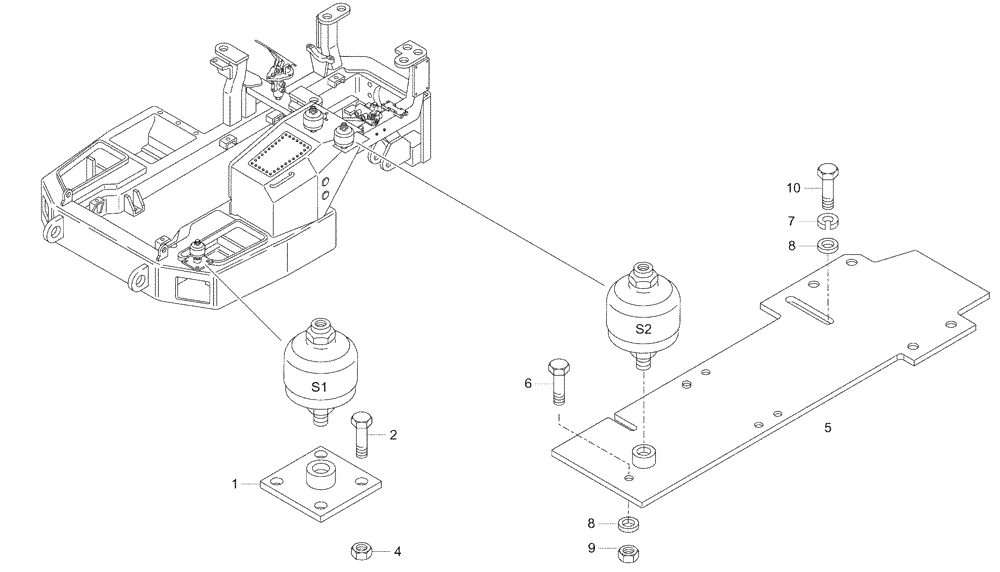

Запчасти Case 330 (47A03001657[01]) - HYDRAULIC CIRCUIT BRAKE SYSTEM - ACCUMULATOR CLAMPING (09) - Implement / Hydraulics / Frame / Brakes

1

8998198428

PLATE

1шт.

2

8900140879

BOLT,M8 x 25mm

M8 x 25

4шт.

Serial Number : Until HHD0000242

1шт.

2

8900116549

BOLT

M8 x 20

4шт.

Serial Number : HHD0000230 And After

1шт.

3

8900141697

WASHER

4шт.

Serial Number : Until HHD0000242

1шт.

4

8900016391

NUT

M8

4шт.

Serial Number : Until HHD0000242

1шт.

4

8900115122

NUT

4шт.

Serial Number : HHD0000230 And After

1шт.

5

8998198426

PLATE

1шт.

6

8900100975

BOLT

M12 x 50

2шт.

7

8900115529

LOCK WASHER

4шт.

8

8917095204

COLLAR

4шт.

9

8900160490

NUT

M12

2шт.

10

8900140406

BOLT

M12 x 30 x 1.75

2шт.
