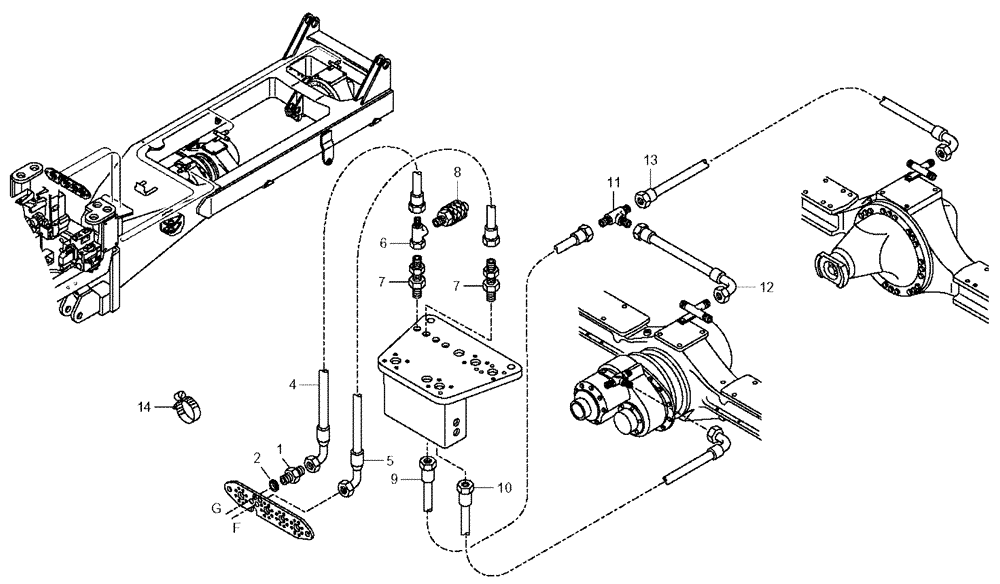

Запчасти Case 330 (47A02001657[01]) - HYDRAULIC CIRCUIT BRAKE SYSTEM - FRAME PART (09) - Implement / Hydraulics / Frame / Brakes

1

89500403209

HYD CONNECTOR

1шт.

2

8998198017

COPPER WASHER

1шт.

4

8900191107

FLEXIBLE HOSE

1шт.

5

8900190989

FLEXIBLE HOSE

1шт.

6

8998198278

SWIVEL CONNECTION

1шт.

7

89500404280

HYD CONNECTOR

2шт.

8

8900183360

SWIVEL CONNECTION

1шт.

9

8900191115

FLEXIBLE HOSE

1шт.

10

8900195641

FLEXIBLE HOSE

1шт.

11

8900191129

HYD CONNECTOR

1шт.

12

8900191108

FLEXIBLE HOSE

1шт.

13

8900191109

FLEXIBLE HOSE

1шт.

14

8900150511

COLLAR

1шт.
