(02A00010582[02]) - ENGINE - ACCESSORIES - FAN (87449897)

Запчасти Case 330 (02A00010582[02]) - ENGINE - ACCESSORIES - FAN (87449897) (01) - ENGINE

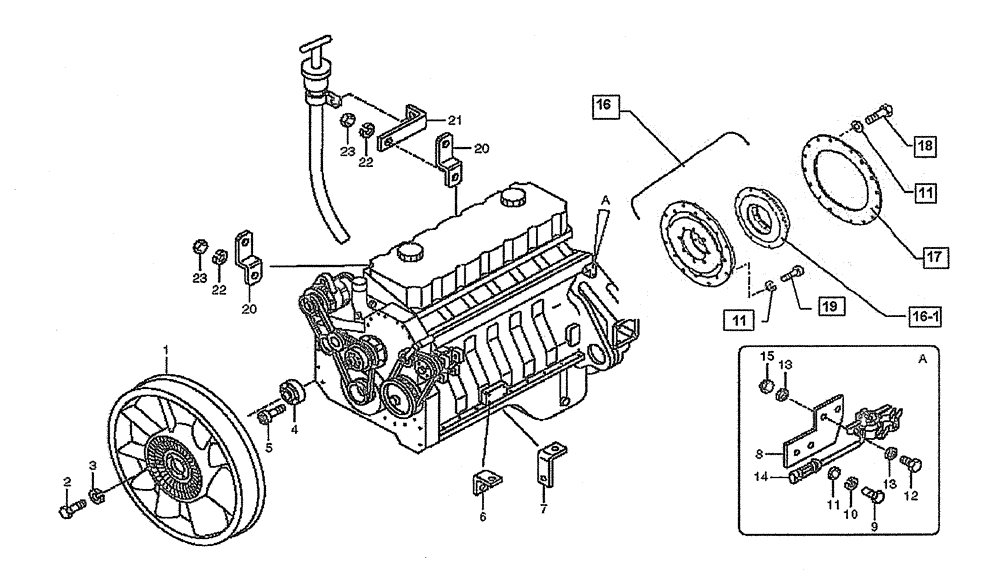

Схема запчастей Case 330 - (02A00010582[02]) - ENGINE - ACCESSORIES - FAN (87449897) (01) - ENGINE
11
16-1
3
14
23
18
22
4
22
19
13
1
2
17
16
12
15
7
11
21
11
6
20
10
5
8
23
9
20
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

8941213626

BLOWER

FAN ASSY, Tier 2 Models; Includes Fan Clutch Which Is Not Serviced Separately

1шт.

2

8900140738

BOLT

M8 x 20

4шт.

3

8900956220

LOCK WASHER

4шт.

4

89500401747

SPACER

1шт.

5

8960010257

BOLT,3/8" - 16 x 1"

3/8"UNC x 1"

6шт.

6

8900167319

BRACKET

1шт.

7

8900176147

BRACKET

1шт.

8

8960630114

BRACKET

1шт.

9

8900140488

BOLT

M10 x 1.5 x 25

2шт.

10

8900001049

LOCK WASHER

2шт.

11

8900141413

WASHER

22шт.

12

8900140729

BOLT

M6 x 16

2шт.

13

8900140731

WASHER

4шт.

14

8900124004

RELAY

1шт.

15

8900101322

NUT

2шт.

16

89500415336

FLEXIBLE COUPLING

Replaces 8998196148 Tear Guard

1шт.

16-1

8900134212

RUBBER JOINT

1шт.

NS

NOT SERVICED

LOAD SENSOR; On Flywheel Housing; Order Through Cummins Distributor

1шт.

17

89500417684

SHIELD

Replaces 8998198248 Shield

1шт.

18

8900001030

BOLT

3/8"UNC x 3/4"

12шт.

19

8900190248

BOLT

3/8"UNC x 1 3/8"

8шт.

20

8998197513

BRACKET

2шт.

21

8900168014

BRACKET

1шт.

22

8900956224

COLLAR

2шт.

23

8900113178

NUT

M8 x 1.25

2шт.

NSS

NOT SOLD SEPARAT

Engine Oil Tube & Dipstick

1шт.

Not Serviced thru CNH - Contact Cummins with Engine S/N for Service Parts

1шт.
