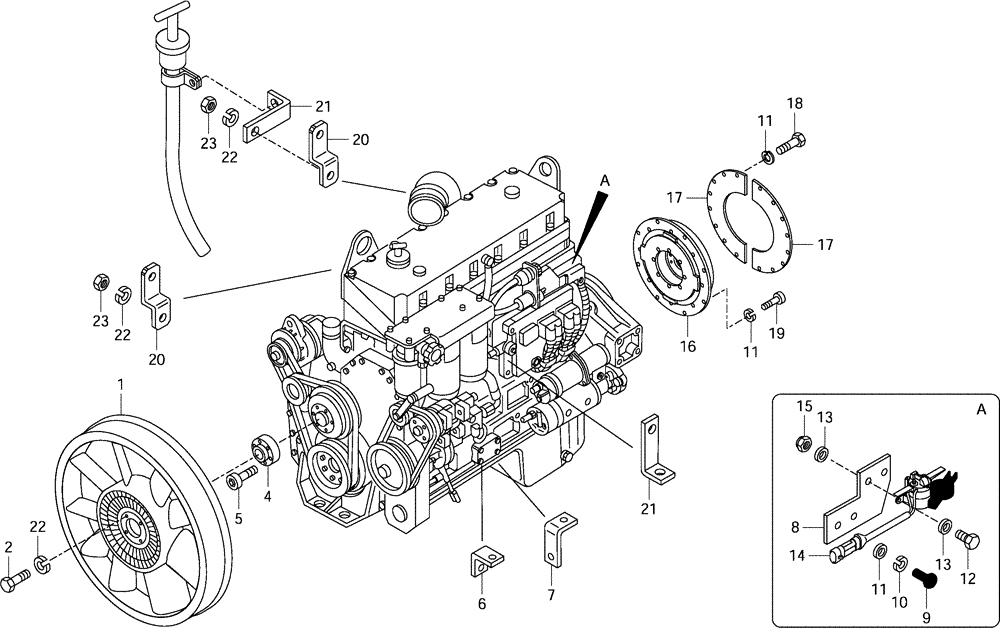

Запчасти Case 330 (02A00010582[01]) - ENGINE - ACCESSORIES (01) - ENGINE

1

8941213626

BLOWER

FAN ASSY, Tier 2 Models; Includes Fan Clutch Which Is Not Serviced Separately

1шт.

2

8900140738

BOLT

M8 x 20

4шт.

4

89500401747

SPACER

1шт.

5

8960010257

BOLT,3/8" - 16 x 1"

3/8"UNC x 1"

6шт.

6

8900167319

BRACKET

1шт.

7

8900176147

BRACKET

2шт.

8

8960630114

BRACKET

1шт.

9

8900140488

BOLT

M10 x 1.5 x 25

2шт.

10

8900001049

LOCK WASHER

2шт.

11

8900141413

WASHER

21шт.

12

8900140729

BOLT

M6 x 16

2шт.

13

8900140731

WASHER

4шт.

14

8900124004

RELAY

1шт.

15

8900101322

NUT

2шт.

16

8998196148

ENGINE FLYWHEEL

On Some Models, Flywheel May be Used With 8900195228 Plate Which Is Located Behind Flywheel

1шт.

8900195228

ENGINE FLYWHEEL

PLATE; 316 mm ID x 405 mm OD; Has 8 Bolt Holes, 6 Notches; If Used

1шт.

NS

NOT SERVICED

LOAD SENSOR; On Flywheel Housing; Order Through Cummins Distributor

1шт.

17

8998198248

SHIELD

2шт.

18

8900001030

BOLT

3/8"UNC x 3/4"

12шт.

19

8900190248

BOLT

3/8"UNC x 1 3/8"

8шт.

20

8998197513

BRACKET

2шт.

21

8900168014

BRACKET

2шт.

22

8900956224

COLLAR

6шт.

23

8900113178

NUT

M8 x 1.25

1шт.

NSS

NOT SOLD SEPARAT

Engine Oil Tube & Dipstick

1шт.

Not Serviced thru CNH - Contact Cummins with Engine S/N for Service Parts

1шт.
