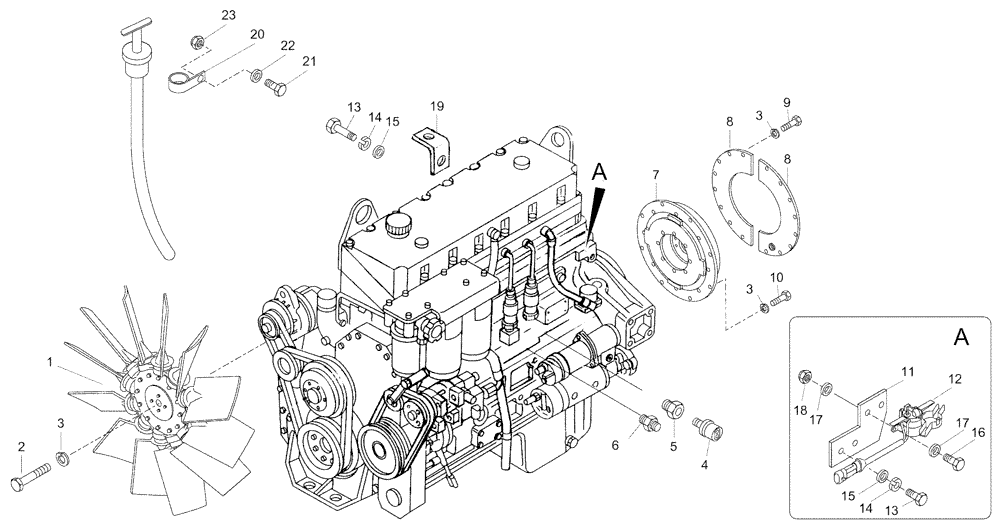

Запчасти Case 330 (02A00010574[01]) - ENGINE - ACCESSORIES (01) - ENGINE

1

8941213626

BLOWER

FAN ASSY, Tier 2 Models; Includes Fan Clutch Which Is Not Serviced Separately

1шт.

2

8900190210

BOLT

3/8"UNCX3 1/4"

6шт.

3

8900141413

WASHER

26шт.

4

8900955255

SLEEVE

1шт.

5

8900195389

ADAPTER

1шт.

6

8998196579

TRANSMITTER

Engine Temp Switch

1шт.

7

8998196148

ENGINE FLYWHEEL

On Some Models, Flywheel May be Used With 8900195228 Plate Which Is Located Behind Flywheel

1шт.

8900195228

ENGINE FLYWHEEL

PLATE; 316 mm ID x 405 mm OD; Has 8 Bolt Holes, 6 Notches; If Used

1шт.

NS

NOT SERVICED

LOAD SENSOR; On Flywheel Housing; Order Through Cummins Distributor

1шт.

8

8998198248

SHIELD

2шт.

9

8900001030

BOLT

3/8"UNCX 3/4"

12шт.

10

8900190248

BOLT

3/8"UNCX1"

8шт.

11

8960630114

BRACKET

1шт.

12

8900124004

RELAY

1шт.

13

8900140488

BOLT

M10 x 1.5 x 25

3шт.

14

8900001049

LOCK WASHER

3шт.

15

8900113173

WASHER

2шт.

16

8900140729

BOLT

M6 x 16

2шт.

17

8900140731

WASHER

4шт.

18

8900101322

NUT

M6

2шт.

19

8900167319

BRACKET

1шт.

20

8900033483

COLLAR

1шт.

21

8900005670

BOLT

M10 x 70

1шт.

22

8900195112

SPACER

1шт.

23

8900025351

NUT

M10

1шт.

NSS

NOT SOLD SEPARAT

Engine Oil Tube & Dipstick

1шт.

Not Serviced thru CNH - Contact Cummins with Engine S/N for Service Parts

1шт.
