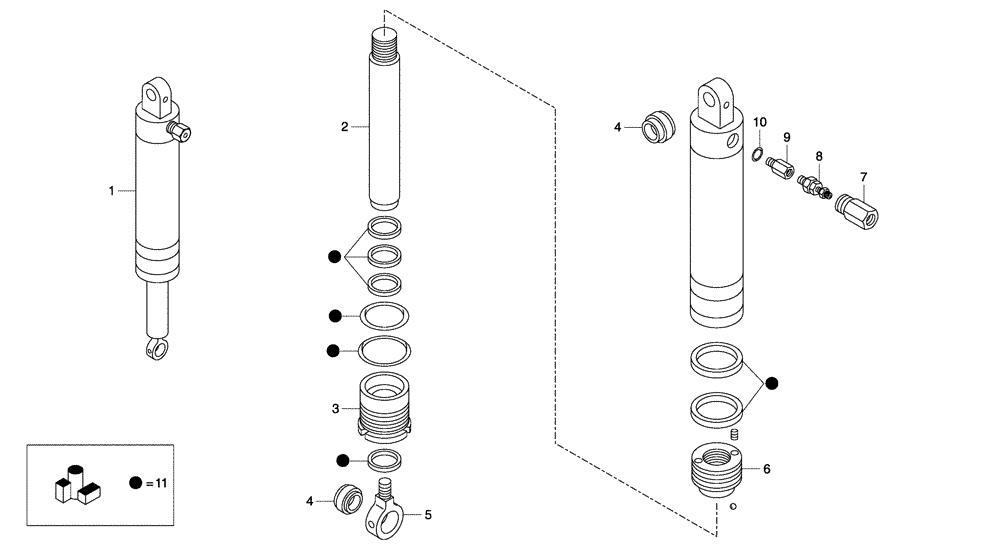

Запчасти Case 330 (38D00000015[01]) - CYLINDER FRONT SUSPENSION (09) - Implement / Hydraulics / Frame / Brakes

1

89500400943

CYLINDER

1шт.

Consists of 2 to 11

1шт.

2

8900129087

ROD

1шт.

3

8900129088

RING NUT

1шт.

4

8900129082

BUSHING

2шт.

5

8900129084

CLAMP

1шт.

6

8900129086

JACK PISTON

Does Not Include The Ball Bearings and Set Screws

1шт.

8900133577

SCREW

Set Screw

2шт.

8900133576

BALL

Ball Bearings

1шт.

7

8900193972

PLUG

1шт.

8

8900046408

HYDRAULIC VALVE

1шт.

9

8900193951

HYD CONNECTOR

1шт.

10

8900193973

SEALING RING

SEALRING

1шт.

11

8900128484

SEAL KIT

1шт.
