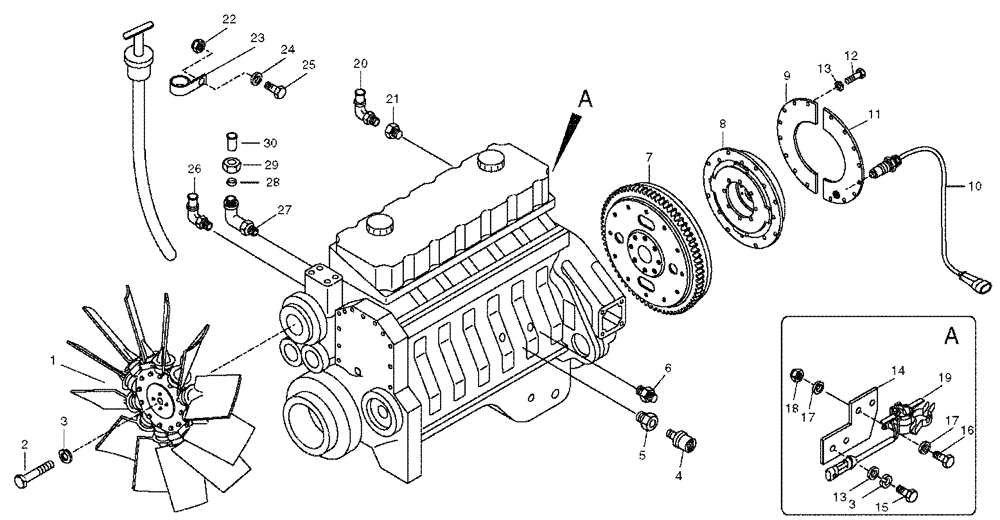

Запчасти Case 330 (02A00000574[01]) - ENGINE - ACCESSORIES (01) - ENGINE

1

8998199781

FAN

Tier 1 Models

1шт.

2

8900190210

BOLT

3/8"UNCX3 1/4"

6шт.

3

8900001049

LOCK WASHER

20шт.

4

8900955255

SLEEVE

1шт.

5

8900195389

ADAPTER

1шт.

6

8998196579

TRANSMITTER

Engine Temp Switch

1шт.

7

8900126327

1шт.

8

8998196148

ENGINE FLYWHEEL

On Some Models, Flywheel May be Used With 8900195228 Plate Which Is Located Behind Flywheel

1шт.

8900195228

ENGINE FLYWHEEL

PLATE; 316 mm ID x 405 mm OD; Has 8 Bolt Holes, 6 Notches; If Used

1шт.

9

8998198247

SHIELD

1шт.

10

8900957199

TRANSMITTER

1шт.

11

8998198248

SHIELD

1шт.

12

8900190248

BOLT

3/8"UNCX1 3/8"

20шт.

13

8900113173

WASHER

20шт.

14

8960630114

BRACKET

1шт.

15

8900140488

BOLT

M10 x 1.5 x 25

2шт.

16

8900140729

BOLT

M6 x 16

2шт.

17

8900140731

WASHER

4шт.

18

8900101322

NUT

M6

2шт.

19

8900124004

RELAY

1шт.

20

8900191436

HYD CONNECTOR

1шт.

21

8998199855

HOLDER

1шт.

22

8900009063

NUT

M10

1шт.

23

8900033483

COLLAR

1шт.

24

8900195112

SPACER

1шт.

25

8900005670

BOLT

M10 x 70

1шт.

26

8998199855

HOLDER

1шт.

27

8900185936

HYD CONNECTOR

1шт.

28

8900169804

SLEEVE

1шт.

29

8900169803

NUT

M10

1шт.

30

8998198216

PIPE

1шт.
