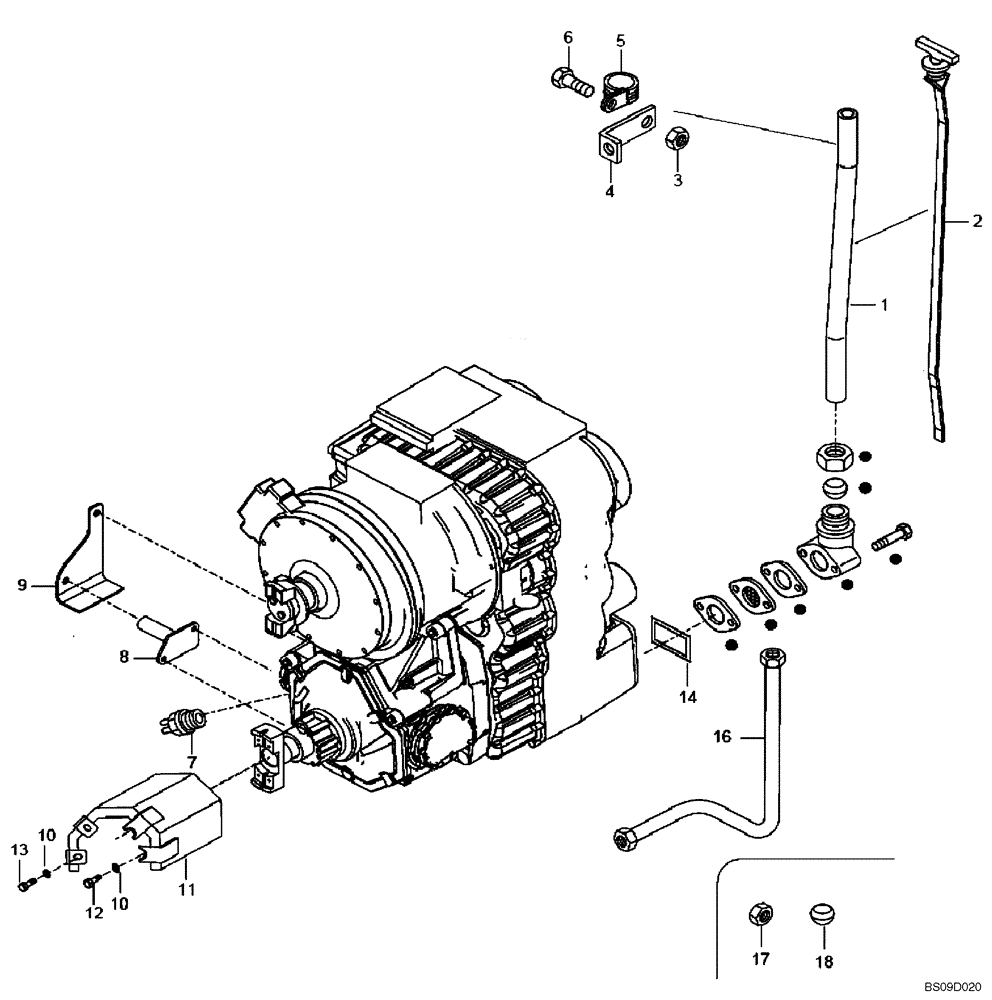

Запчасти Case 327B (16A00010569[001]) - DIPSTICK, GEARBOX W/RETARDER (P.I.N. HHD0327BN7PG57000 AND AFTER) (84214599) (03) - Converter / Transmission

REF

INSTRUCTION

Dipstick, Gearbox W/Retarder (84214599)

1шт.

1

89500418237

PIPE

1шт.

2

89500433797

DIPSTICK

Transmission Oil

1шт.

3

8900115122

NUT

S.L.

1шт.

4

89500419812

BRACKET

1шт.

5

8900105517

COLLAR

Strap Band

1шт.

6

8900116549

BOLT

M8 x 20

4шт.

7

8900122909

SWITCH

Differential Lock

1шт.

8

89500423128

SUPPORT

1шт.

9

89500423129

SHIELD

1шт.

10

8900141413

WASHER

4шт.

11

89500407041

SHIELD

1шт.

12

8900010081

BOLT

M10 x 1.5 x 60

2шт.

13

8900005670

BOLT

M10 x 70

2шт.

14

8900056069

RING

Copper

1шт.

16

89500425480

HYD TUBE,35 mm DIA

1шт.

17

8900169803

NUT

Union

2шт.

18

8900169804

SLEEVE

Sleeve; Two-Cone

2шт.
