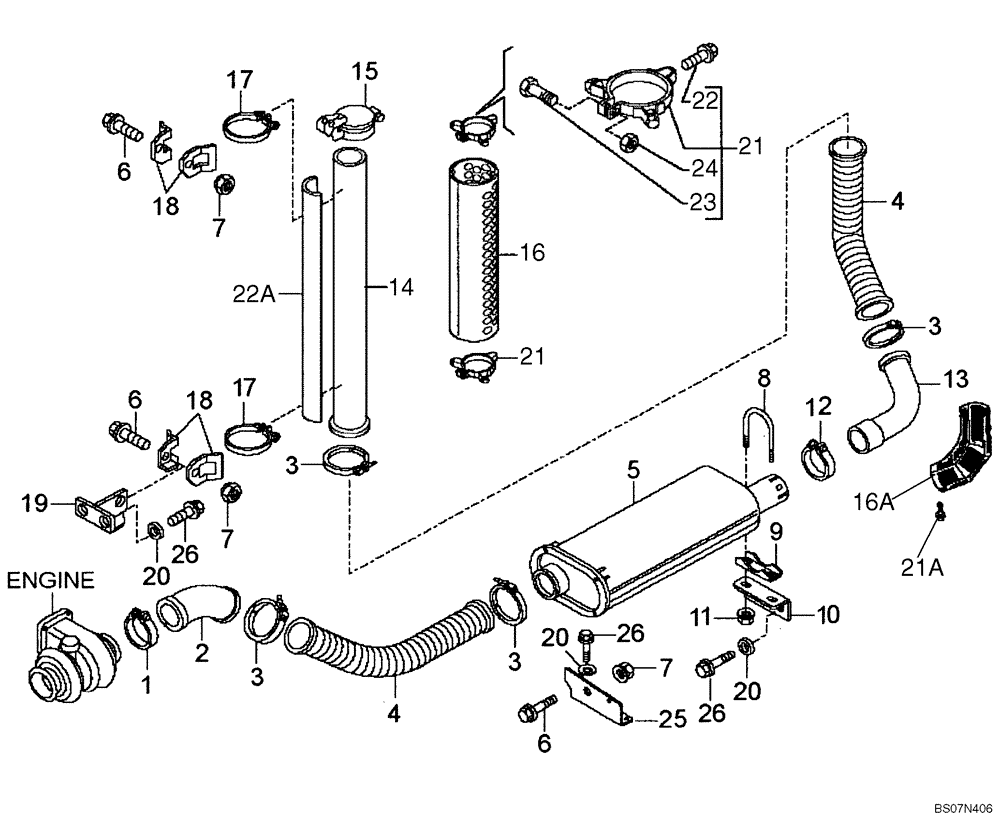

Запчасти Case 327B (08A00000661[001]) - ENGINE EXHAUST (87398741) (01) - ENGINE

1

8900124589

COLLAR

1шт.

2

89500414939

EXHAUST SYSTEM PIPE

1шт.

3

8900185213

COLLAR

4шт.

4

8900185292

EXHAUST SYSTEM PIPE

2шт.

5

89500406595

MUFFLER

1шт.

6

8918139525

SCREW,M10 x 30mm

M10 x 30; Replaces 8900115589 Bolt, Qty Was 4

4-6шт.

7

8900140777

NUT

M10; Qty Was 4

4-6шт.

8

89500406621

COLLAR

1шт.

9

89500406622

SUPPORT

1шт.

10

89500414400

SUPPORT

1шт.

11

8900115122

NUT

M8

2шт.

12

89500407828

STRAP

1шт.

13

89500414956

EXHAUST SYSTEM PIPE

1шт.

14

89500408822

EXHAUST SYSTEM PIPE

1шт.

15

8900156503

GUARD

1шт.

16

89500408792

SHIELD

If Used

1шт.

16a

89500422868

SHIELD

Replaces 89500421108 Shield

1шт.

17

8960110033

HOSE CLIP

2шт.

18

89500408796

SUPPORT

4шт.

19

89500408804

SUPPORT

1шт.

20

8900048949

WASHER

Replaces 8900956093 Washer Used On Some Models, Qty Was 6

6-8шт.

21

89500408795

SUPPORT

If Used

2шт.

21a

8918139525

SCREW,M10 x 30mm

M10 x 30; If Used, Replaces 8900115589 Bolt

2шт.

22

8900116549

BOLT

M8 x 20; If Used

6шт.

22a

89500422634

SHIELD

SHIELD, If Used

1шт.

23

890056265

BOLT

M8 x 40; If Used

2шт.

24

8900179410

NUT

M8; If Used

2шт.

25

89500414954

SUPPORT

1шт.

26

8918139525

SCREW,M10 x 30mm

M10 x 30; Replaces 8900001048 Bolt M10 x 1.5 x 30 Used On Some Models

6шт.
