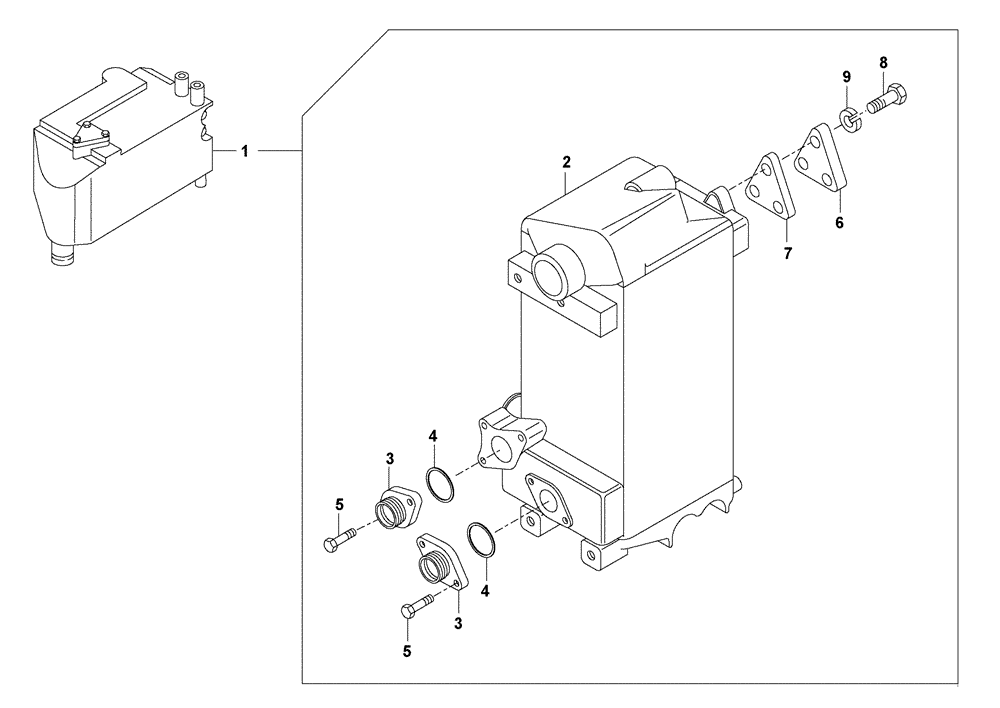

Запчасти Case 327B (05B00000012[001]) - COOLER ASSY (89500411763) (01) - ENGINE

1

NSS

NOT SOLD SEPARAT

1шт.

Include(s) 2 - 9

1шт.

2

8900132660

HEAT EXCHANGER

Replaces 8900118873 Heat Exchanger Aluminum

1шт.

3

8900118889

FITTING

2шт.

4

8900117503

THRUST RING

2шт.

5

8900117523

BOLT,M8 x 28mm

M8 x 28

4шт.

6

89500409134

COVER

1шт.

7

89500409135

GASKET

1шт.

8

8900140738

BOLT

M8 x 20

3шт.

9

8900956220

LOCK WASHER

3шт.

10

47408257

SHAFT

Kit, Heat Exchange Mounting (Not Shown)

1шт.

11

47408273

KIT

Kit, Heat Exchange Mounting (Not Shown)

1шт.

12

84578528

HEAT EXCHANGER

Heat Exchange Stainless Steel

1шт.
