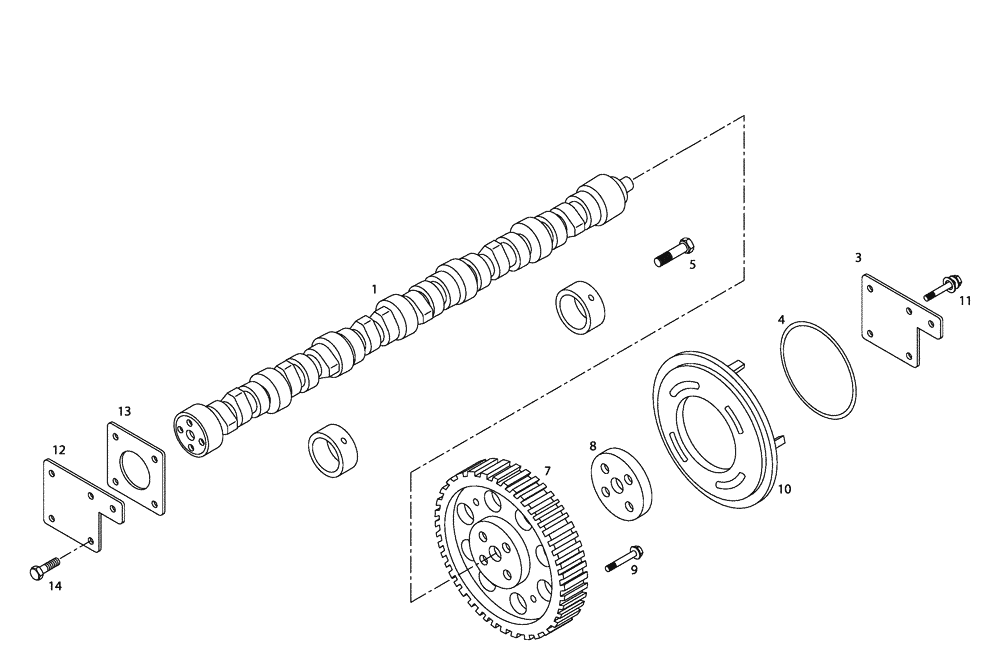

Запчасти Case 327B (01A03000291[001]) - TIMING SYSTEM - CAMSHAFT GEAR (87600168) (01) - ENGINE

1

504131330

SHAFT

1шт.

504131330R

REMAN-CAMSHAFT

327B TIER 3 (NA) - N6PG56032 -(1/06-)

1шт.

504131330C

CORE-CAMSHAFT

Return Number

1шт.

3

504204255

COVER

1шт.

4

14466981

O-RING,0.139" Thk x 5.109" ID, -251, Cl 7, 75 Duro

1шт.

5

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

5шт.

7

99450035

GEAR

1шт.

8

98496024

SPACER

1шт.

9

99431774

BOLT

4шт.

10

500336396

PLATE

1шт.

11

500397562

BOLT

4шт.

12

500370032

COVER

1шт.

13

500370033

GASKET

1шт.

14

16587124

FLANGE BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.
