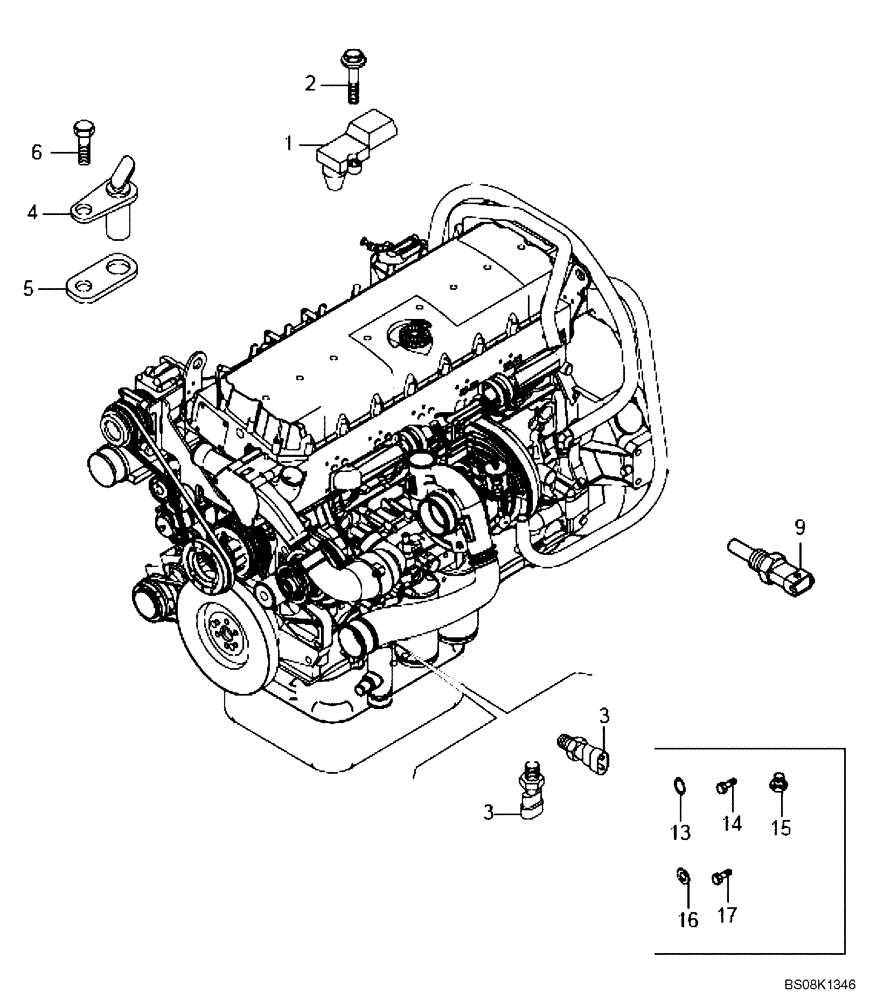

Запчасти Case 327B (01A00000338[001]) - SENSORS, ENGINE (P.I.N. HHD0327BN7PG5700 AND AFTER) (84163537) (01) - ENGINE

REF

INSTRUCTION

Sensors, Engine (84163537)

1шт.

1

504073323

SENSOR

Temperature & Pressure Sensor, 4 wire

1шт.

2

2853118

BOLT,Hex, M6 x 1 x 18mm

Iveco

1шт.

3

89500382599

SENSOR

Coolant Temp

2шт.

4

504096645

TRANSMITTER

Crankshaft & Camshaft Speed Sensor, 2 wire

2шт.

5

504163664

SPACER

1шт.

6

84432127

HEX SOC SCREW,M6 x 25mm, Cl 12.9

1шт.

9

500377533

SENDER UNIT

Pressure; Iveco

1шт.

13

2852820

O-RING,0.07" Thk x 0.676" ID, 17, Cl 7, 75 Duro

Iveco

1шт.

14

4899110

SCREW,Hex Flg, M6 x 1 x 20

2шт.

15

16992215

PLUG

Hex; Iveco

1шт.

16

99489017

GASKET,9.9mm ID x 20mm OD x 2.5mm Thk

1шт.

17

8916689024

BOLT,M6 x 12mm

1шт.
