(01A00000337[001]) - INJECTOR, FUEL SYSTEM (P.I.N. HHD0327BNPG5700 AND AFTER) (84163277)

Запчасти Case 327B (01A00000337[001]) - INJECTOR, FUEL SYSTEM (P.I.N. HHD0327BNPG5700 AND AFTER) (84163277) (01) - ENGINE

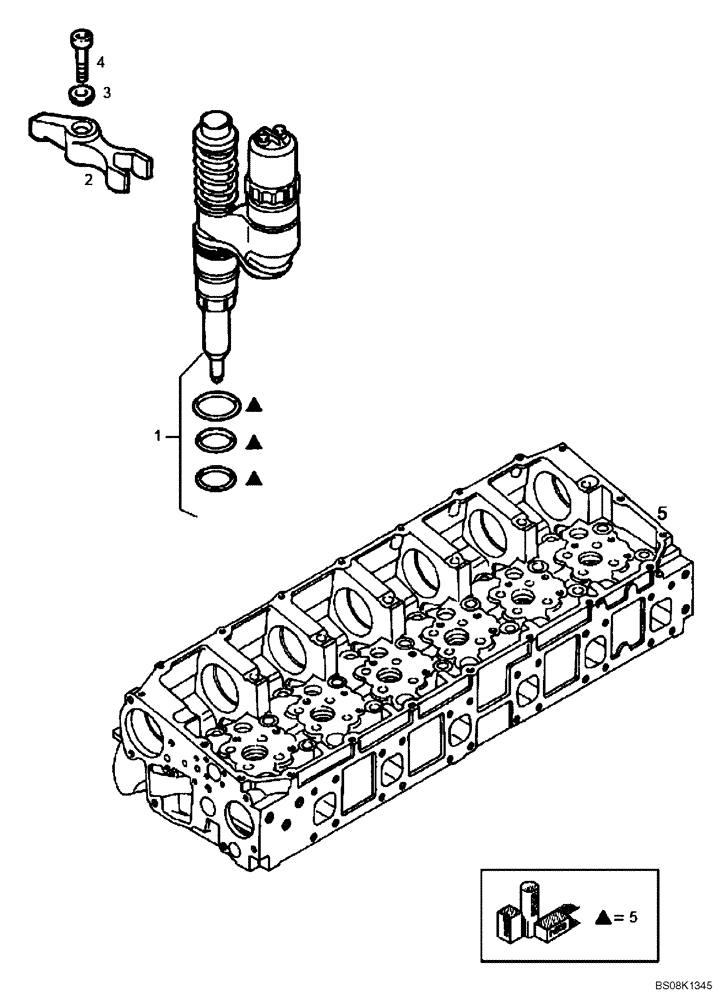

Схема запчастей Case 327B - (01A00000337[001]) - INJECTOR, FUEL SYSTEM (P.I.N. HHD0327BNPG5700 AND AFTER) (84163277) (01) - ENGINE
1
3
2
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Injector, Fuel (84163277)

1шт.

1

504287106

FUEL SYSTEM INJECTOR

Iveco

6шт.

1

504287106R

REMAN-FUEL INJECTOR

Remanufactured Fuel System Injector

6шт.

1

504287106C

CORE-FUEL INJECTOR

Return Number

6шт.

2

99435006

BRACKET

Iveco

6шт.

3

99435007

LOCK WASHER

Iveco

6шт.

4

16707734

SCREW,M8 x 1.25 x 50mm

Iveco

6шт.

5

504140437

REPAIR KIT

6шт.
