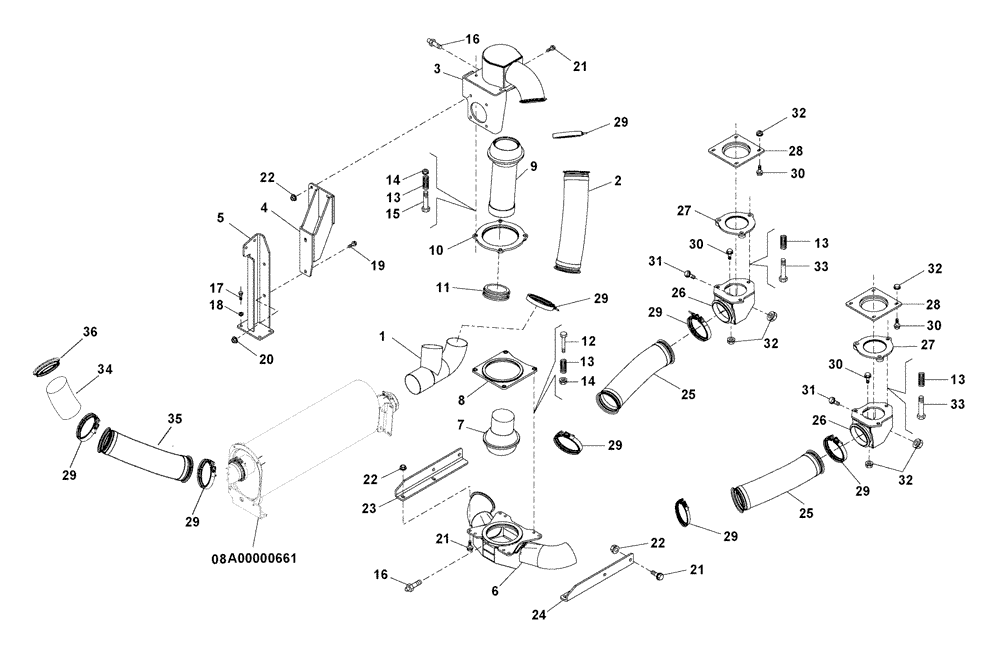

Запчасти Case 327B (72A00000736[001]) - HEATING, DUMP BODY (87363371) (19) - OPTIONS

1

89500416278

EXHAUST SYSTEM PIPE

1шт.

2

89500430371

EXHAUST SYSTEM PIPE

Replaces 89500407102 Pipe, Exhaust Flexible

1шт.

3

89500416312

ELBOW-CONNECTION

ELBOW-CONECTION

1шт.

4

89500409872

SUPPORT

1шт.

5

89500409865

SUPPORT

1шт.

6

89500416305

EXHAUST MANIFOLD

1шт.

7

89500409899

ADAPTER

1шт.

8

89500409827

FLANGE

1шт.

9

89500409894

EXHAUST SYSTEM PIPE

1шт.

10

89500409849

FLANGE

1шт.

11

89500414064

CLAMP

1шт.

12

8900011999

BOLT

4шт.

13

89500401953

SPRING

14шт.

14

8900055100

SPECIAL NUT

SPL; Replaces 8900134430 Nut

8шт.

15

8900955261

BOLT

4шт.

16

8900100865

KEY

2шт.

17

8900140406

BOLT

4шт.

18

8900115529

LOCK WASHER

4шт.

19

8900135062

SCREW,M14 x 40mm

2шт.

20

8900135059

NUT

2шт.

21

8916588224

BOLT,M12 x 40mm

12шт.

22

8900118202

NUT

12шт.

23

89500409845

SUPPORT

1шт.

24

89500409844

SUPPORT

1шт.

25

89500430372

EXHAUST SYSTEM PIPE

Replaces 8900195337 Hose, Flexible - Used On Some models

2шт.

26

89500416503

ELBOW-CONNECTION

ELBOW-CONECTION

2шт.

27

89500416520

FLANGE

2шт.

28

89500416493

PLATE

2шт.

29

8900185213

COLLAR

Qty Was 10

10-12шт.

30

8918139525

SCREW,M10 x 30mm

M10 x 30; Replaces 8900115589 Bolt M10 x 30 Used On Some Models - Qty Was 14

14-16шт.

31

8900124669

BOLT

2шт.

32

8900140777

NUT

Qty Was 16

16-18шт.

33

89500403647

BOLT

6шт.

34

89500414939

EXHAUST SYSTEM PIPE

If Used; Parts Added To Installation

1шт.

35

89500430370

EXHAUST SYSTEM PIPE

If Used; Replaces 8900185292 Pipe, Flexible - Used on Some Models

1шт.

36

8900124589

COLLAR

If Used

1шт.
