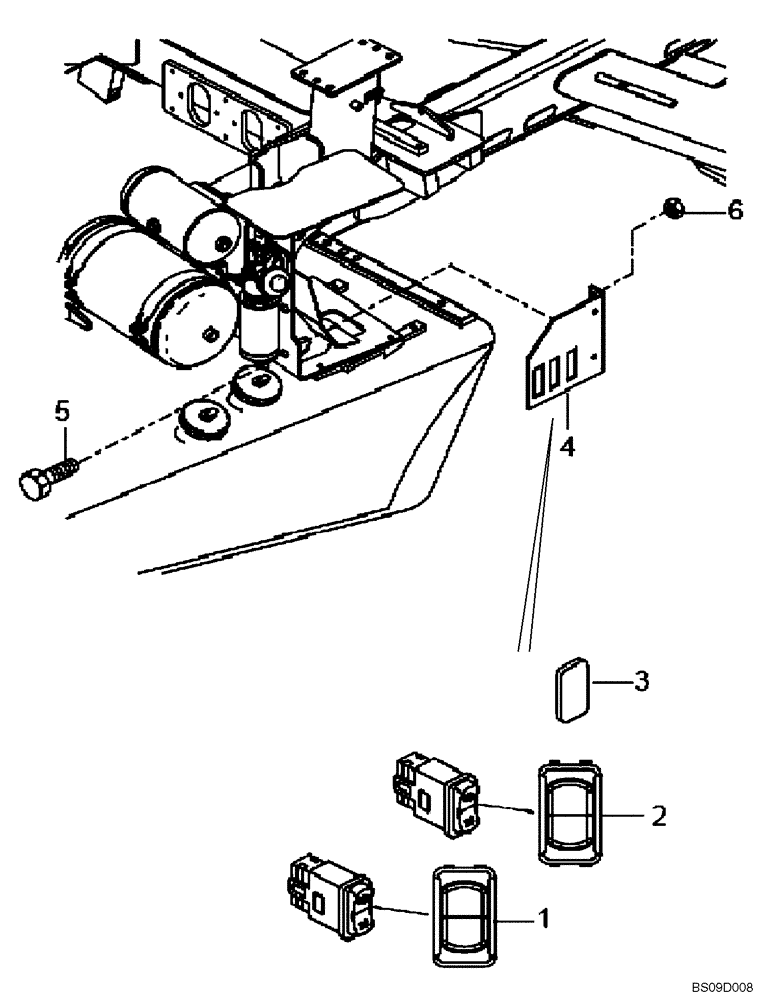

Запчасти Case 327B (67A00002109[001]) - STARTING, MANUAL EXTERNAL (P.I.N. HHD0327BN7PG5700 AND AFTER) (84216508) (13) - Electrical System / Decals

REF

INSTRUCTION

Starting, External Manual (84216508)

1шт.

1

89500409383

SWITCH ASSY

Start - Stop

1шт.

2

89500409382

SWITCH

Battery Engage

1шт.

3

89500409508

PLUG

1шт.

4

89500419001

BRACKET

1шт.

5

8900121098

BOLT,M8 x 16mm

M8 x 16

2шт.

6

8900115122

NUT

S.L.

2шт.
