(67A00002101[001]) - OPTIONAL - CAMERA, REAR VIEW INSTAL (P.I.N. HHD0327B7PG5700 AND AFTER) (84216483)

Запчасти Case 327B (67A00002101[001]) - OPTIONAL - CAMERA, REAR VIEW INSTAL (P.I.N. HHD0327B7PG5700 AND AFTER) (84216483) (13) - Electrical System / Decals

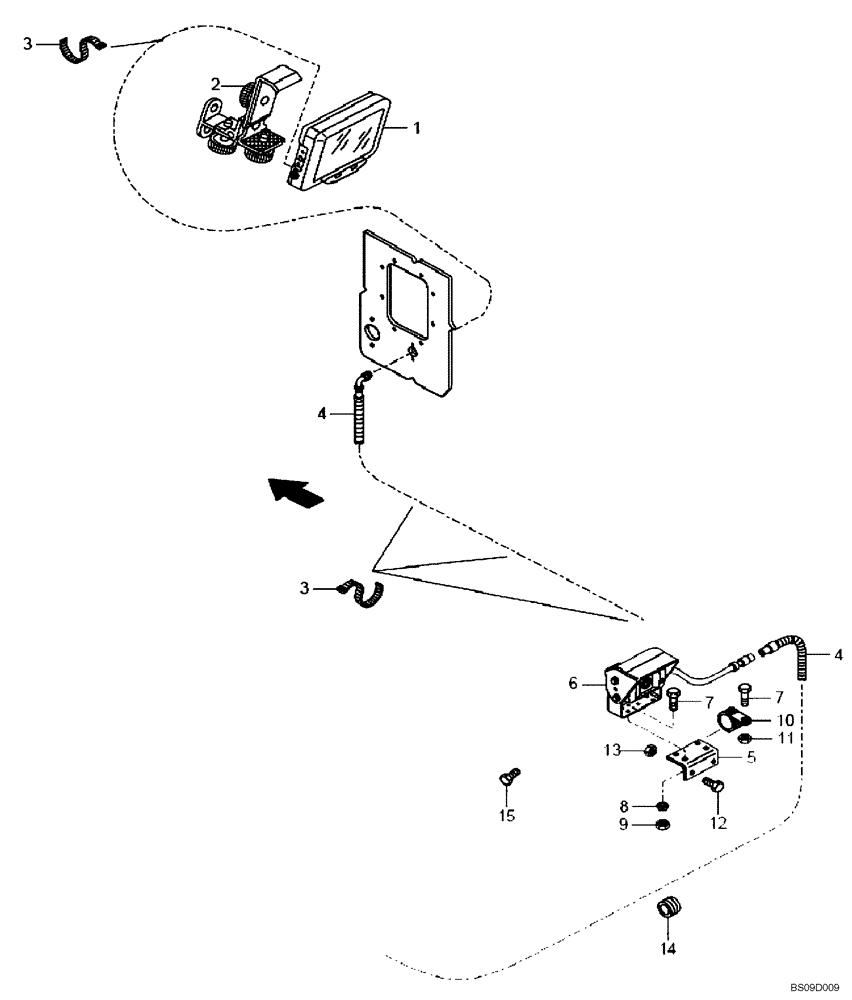

Схема запчастей Case 327B - (67A00002101[001]) - OPTIONAL - CAMERA, REAR VIEW INSTAL (P.I.N. HHD0327B7PG5700 AND AFTER) (84216483) (13) - Electrical System / Decals
4
14
10
11
4
3
9
6
7
3
13
15
1
12
2
5
8
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Camera, Rear View Instal (84216483)

1шт.

1

89500402885

CONTROL MONITOR

Rear View

1шт.

2

8900129987

SUPPORT

Monitor

1шт.

3

8900045763

STRAP

Band

10шт.

4

89500402887

WIRE HARNESS

Camera

1шт.

5

89500436451

SUPPORT

1шт.

6

89500402886

VIDEO CAMERA

And Housing

1шт.

7

8900103726

BOLT

2шт.

8

8900141565

WASHER

Flat

4шт.

9

8900049208

NUT

2шт.

10

8900049243

COLLAR

Strap Band

1шт.

11

8900125009

NUT

1шт.

12

8900115555

BOLT,M8 x 30mm

M8 x 30

2шт.

13

8900115122

NUT

S.L.

2шт.

14

8900122469

GROMMET

1шт.

15

8900124628

BOLT

M6 x 20

1шт.

Выбрано товаров: 16
