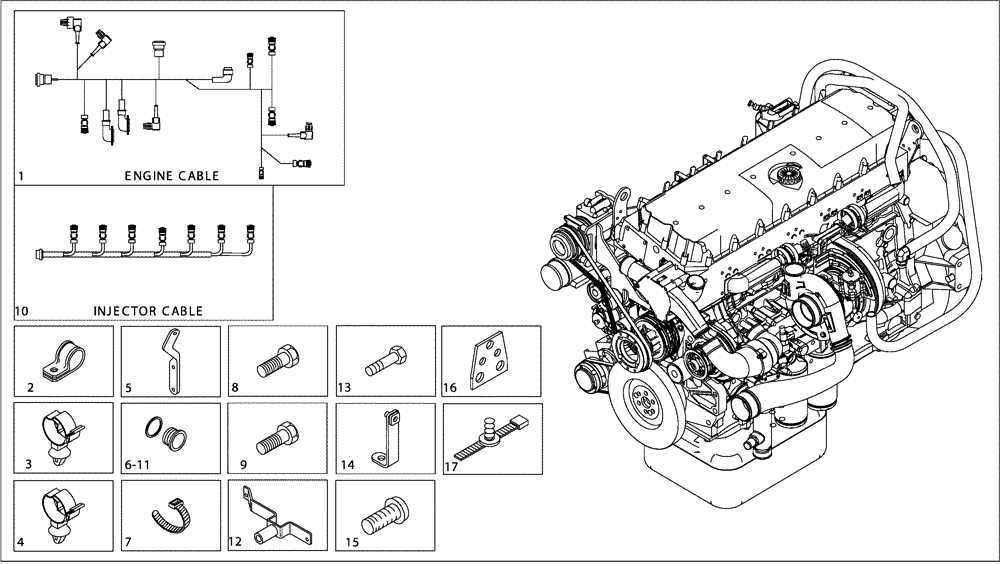

Запчасти Case 327B (01A00000301[001]) - WIRE HARNESS INSTAL, ENGINE (87600033) (01) - ENGINE

1

504131876

WIRE HARNESS

1шт.

2

10450990

CLAMP,26mm, Coat, 9mm Bolt Hole, P Type

26 mm dia.

1шт.

3

504000061

COLLAR

1шт.

4

504000063

COLLAR

1шт.

5

500387097

BRACKET

1шт.

6

11903211

PLUG,M12 x 1.25 x 12, Cl5.8

1шт.

7

42099097

CABLE TIE

CABLE STRAP

6шт.

8

16596925

BOLT,M6 x 12mm

1шт.

9

2852323

SCREW,M8 x 1.25 x 14mm

2шт.

10

504149934

WIRE HARNESS

1шт.

11

99489017

GASKET,9.9mm ID x 20mm OD x 2.5mm Thk

1шт.

12

500371778

BRACKET

1шт.

13

16592225

BOLT,M8 x 55mm

1шт.

14

500320256

BRACKET

1шт.

15

16689424

SCREW,M6 x 30mm

4шт.

16

504067009

BRACKET

1шт.

17

504023286

CLIP,200mm L

2шт.
