(67A00002018[001]) - WIRING HARNESS, CHASSIS (P.I.N. HHD0327BN7PG57000 AND AFTER) (84154971)

Запчасти Case 327B (67A00002018[001]) - WIRING HARNESS, CHASSIS (P.I.N. HHD0327BN7PG57000 AND AFTER) (84154971) (13) - Electrical System / Decals

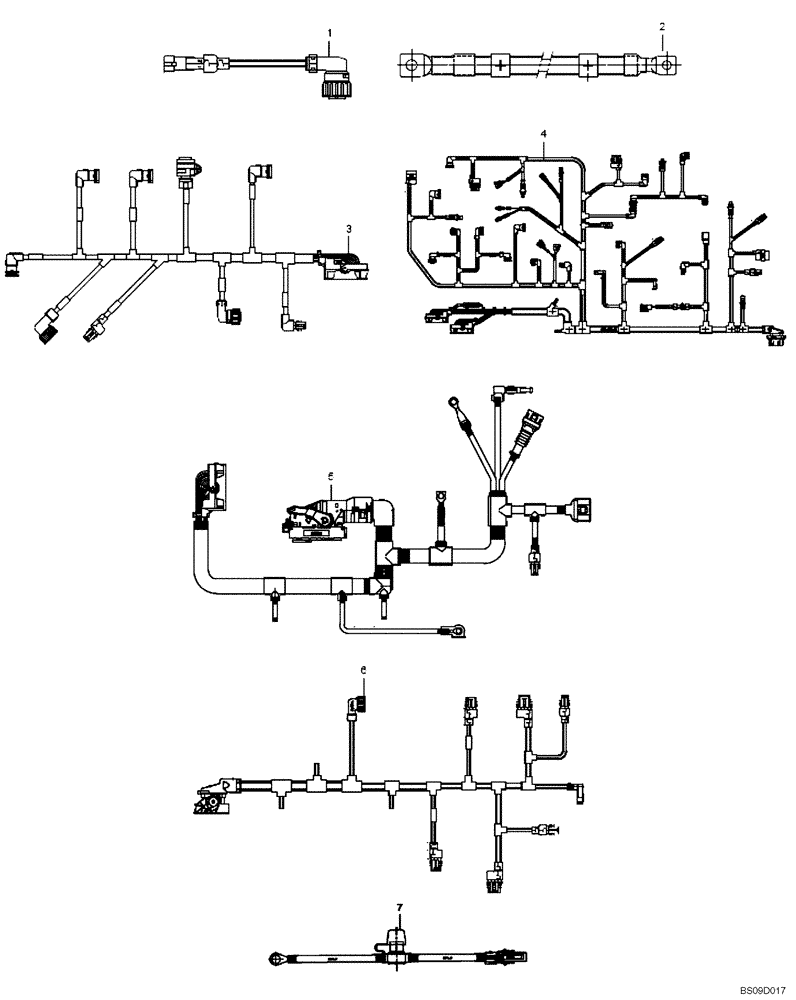

Схема запчастей Case 327B - (67A00002018[001]) - WIRING HARNESS, CHASSIS (P.I.N. HHD0327BN7PG57000 AND AFTER) (84154971) (13) - Electrical System / Decals
3
4
7
2
1
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Wiring Harness, Frame (84154971)

1шт.

1

89500433790

CABLE EXTENSION

Locking Switch

1шт.

2

89500408933

NEG BATTERY CABLE

1шт.

3

89500434074

HARNESS

Transmission - Frame

1шт.

4

89500429431

HARNESS

Front Chassis Services

1шт.

5

89500434075

HARNESS

Harness, Engine

1шт.

6

89500429432

HARNESS

Rear Chassis Services

1шт.

7

89500415980

ELECTRIC CABLE

CABLE, ELECTRIC

1шт.

Выбрано товаров: 8
