(67A00001960[001]) - WIRING HARNESS, CHASSIS (SIMPLE MUX P.I.N. HHD0327BN7PG56159 AND AFTER) (84129639)

Запчасти Case 327B (67A00001960[001]) - WIRING HARNESS, CHASSIS (SIMPLE MUX P.I.N. HHD0327BN7PG56159 AND AFTER) (84129639) (13) - Electrical System / Decals

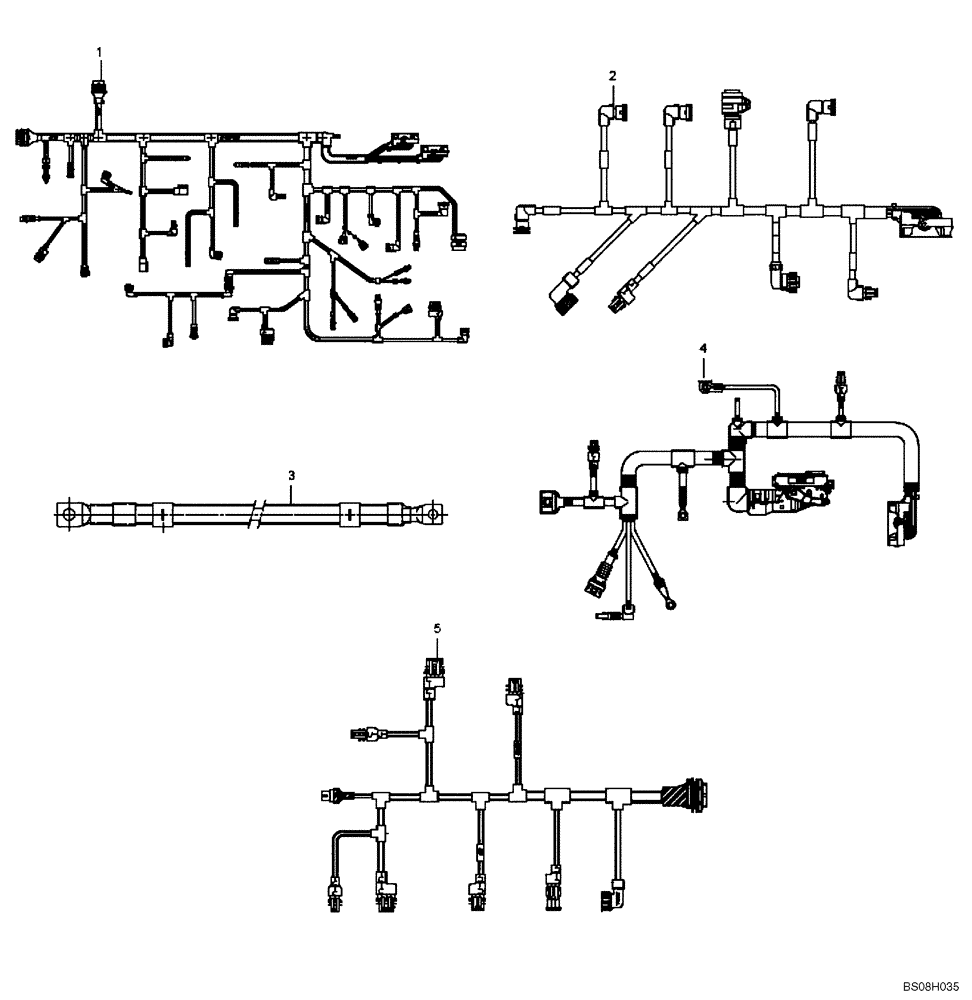

Схема запчастей Case 327B - (67A00001960[001]) - WIRING HARNESS, CHASSIS (SIMPLE MUX P.I.N. HHD0327BN7PG56159 AND AFTER) (84129639) (13) - Electrical System / Decals
3
1
5
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

89500423500

WIRE HARNESS

Front Frame Simple mux

1шт.

2

89500408931

WIRE HARNESS

Transmission

1шт.

3

89500408933

NEG BATTERY CABLE

1шт.

4

89500415489

WIRE HARNESS

Engine

1шт.

5

89500423499

WIRE HARNESS

Rear Chassis

1шт.

Выбрано товаров: 5
