(33A00000792[001]) - BREATHER, FRONT AXLE (P.I.N. HHD0327BN7PG57000 AND AFTER) (84192585)

Запчасти Case 327B (33A00000792[001]) - BREATHER, FRONT AXLE (P.I.N. HHD0327BN7PG57000 AND AFTER) (84192585) (11) - AXLES/WHEELS

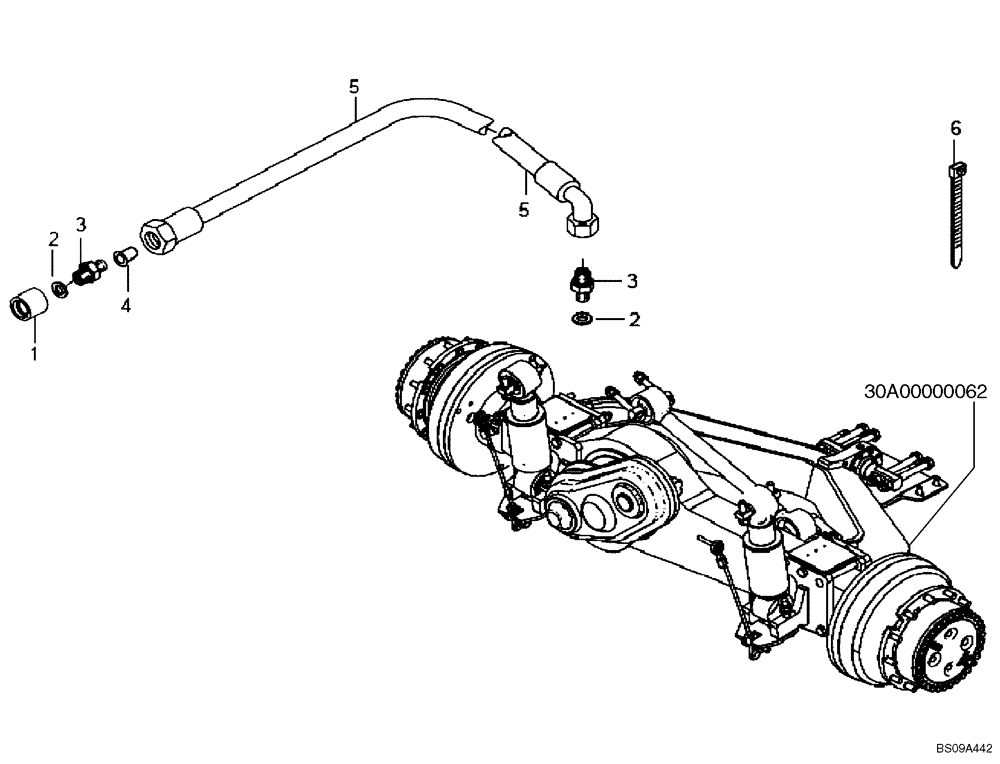

Схема запчастей Case 327B - (33A00000792[001]) - BREATHER, FRONT AXLE (P.I.N. HHD0327BN7PG57000 AND AFTER) (84192585) (11) - AXLES/WHEELS
5
5
30a00000062
2
6
3
3
1
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Breather, Front Axle (84192585)

1шт.

1

8900133013

BREATHER

Axle

1шт.

2

8900115474

COPPER SEAL

2шт.

3

8900141350

HYD CONNECTOR

2шт.

4

89500401611

BUSHING

1шт.

5

89500415569

HOSE ASSY.

1шт.

6

8900150511

COLLAR

Strap Band

1шт.
