(33A00000790[001]) - BREATHER, REAR AXLE (P.I.N. HHD0327BN7PG57000 AND AFTER) (84192559)

Запчасти Case 327B (33A00000790[001]) - BREATHER, REAR AXLE (P.I.N. HHD0327BN7PG57000 AND AFTER) (84192559) (11) - AXLES/WHEELS

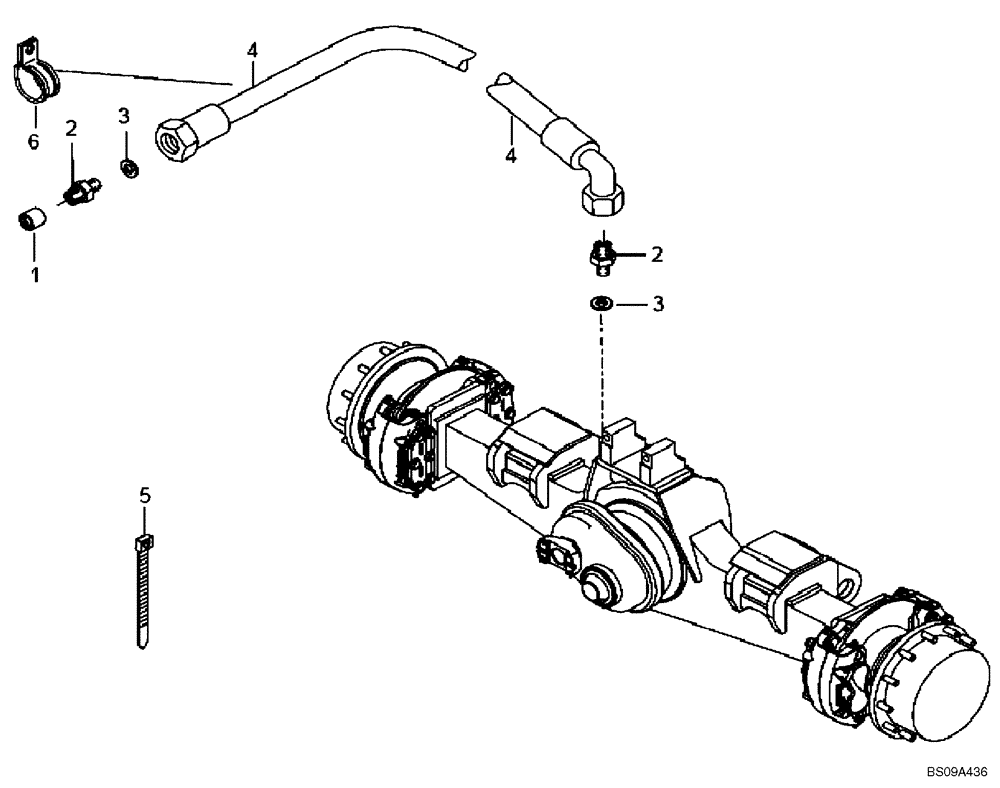

Схема запчастей Case 327B - (33A00000790[001]) - BREATHER, REAR AXLE (P.I.N. HHD0327BN7PG57000 AND AFTER) (84192559) (11) - AXLES/WHEELS
1
3
3
6
2
2
4
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Breather, Rear Axle (84192559)

1шт.

1

89500401611

BUSHING

1шт.

2

8900141350

HYD CONNECTOR

2шт.

3

8900115474

COPPER SEAL

2шт.

4

89500415567

HOSE ASSY.

1шт.

5

8900150511

COLLAR

1шт.

6

8900103926

COLLAR

1шт.
