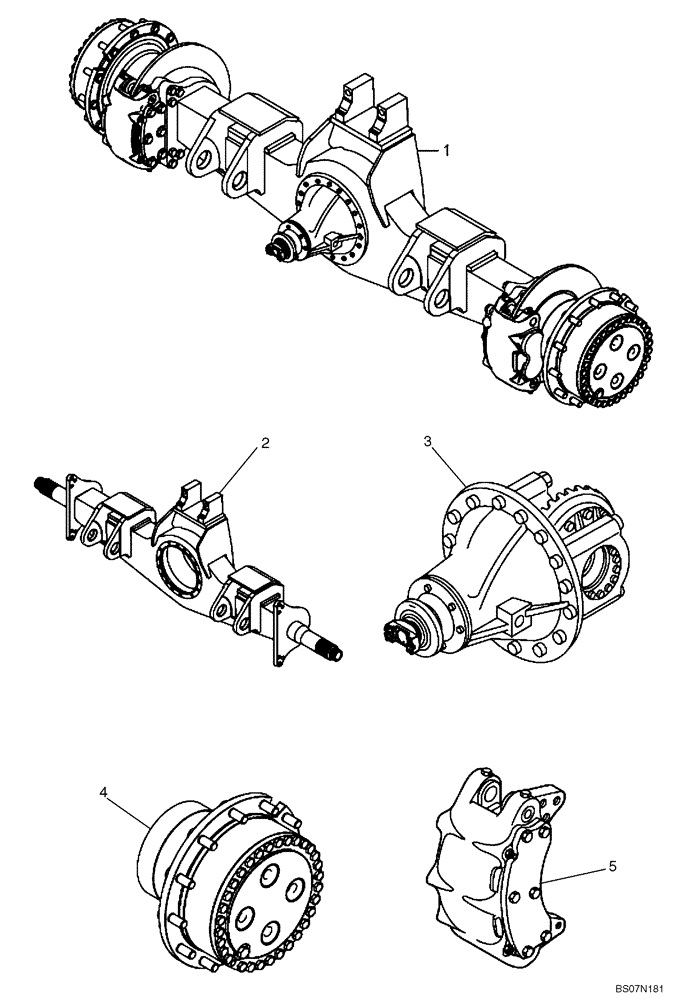

Запчасти Case 327B (33A00000062[001]) - SECTION INDEX, REAR AXLE ASSY W/DRY BRAKE (89500424756) (11) - AXLES/WHEELS

1

89500424756

DRIVE AXLE

ASSY, DRY BRAKE; Include(s) 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Rear Axle Housing 87695829

1шт.

REF

INSTRUCTION

See Figure(s) 33A00000774 (001) For Service Breakdown

1шт.

3

8998340142

DIFFERENTIAL ASSY

1шт.

REF

INSTRUCTION

See Figure(s) 33A00000726 (001) For Service Breakdown

1шт.

4

NSS

NOT SOLD SEPARAT

Reduction Gear Assy 87695690

1шт.

REF

INSTRUCTION

See Figure(s) 33A00010727 (001) For Service Breakdown

1шт.

5

NSS

NOT SOLD SEPARAT

Brake Mounting Assy 87515680

1шт.

REF

INSTRUCTION

See Figure(s) 33A00000728 (001) For Service Breakdown

1шт.
