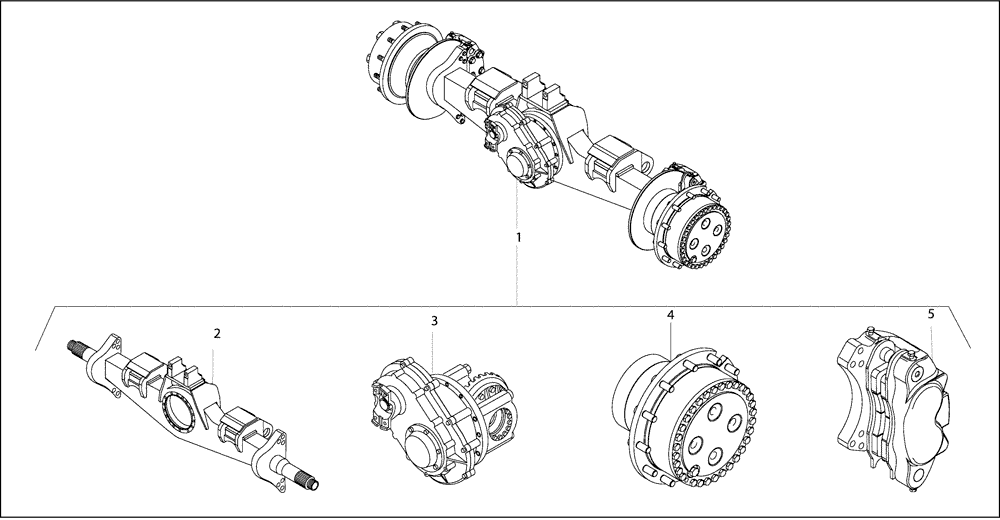

Запчасти Case 327B (32A00000057[001]) - SECTION INDEX, INTERMEDIATE AXLE ASSY W/DRY BRAKE (89500424753) (11) - AXLES/WHEELS

1

89500424753

BRAKE

DRY, AXLE ASSY; Incl 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Intermediate Axle Housing 87695002

1шт.

REF

INSTRUCTION

See Figure(s) 32A00000670 (001) For Service Breakdown

1шт.

3

8900134284

DIFFERENTIAL ASSY

1шт.

REF

INSTRUCTION

See Figure(s) 32A00000671 (001) For Service Breakdown

1шт.

4

NSS

NOT SOLD SEPARAT

Reduction Gear 87695211

1шт.

REF

INSTRUCTION

See Figure(s) 32A00000672 (001) For Service Breakdown

1шт.

5

NSS

NOT SOLD SEPARAT

Brake Mounting Assy 87515680

2шт.

REF

INSTRUCTION

See Figure(s) 32A00000648 (001) For Service Breakdown

1шт.
