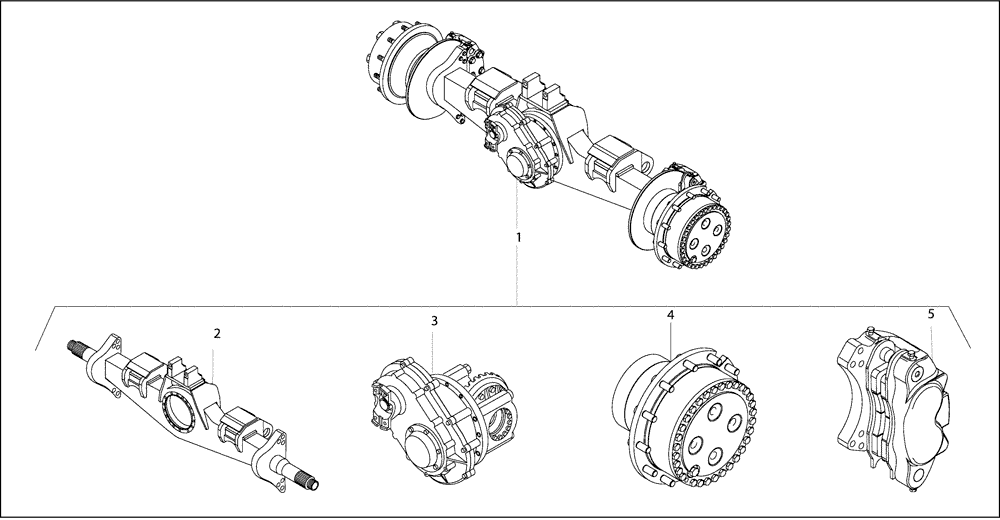

Запчасти Case 327B (32A00000056[001]) - SECTION INDEX, INTERMEDIATE AXLE ASSY W/DRY BRAKE (89500417905) (11) - AXLES/WHEELS

1

89500417905

AXLE

Incl 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

87515676 Axle Housing

1шт.

REF

INSTRUCTION

See Figure(s) 32A00000645 (001) For Service Breakdown

1шт.

3

8900134284

DIFFERENTIAL ASSY

1шт.

REF

INSTRUCTION

See Figure(s) 32A00000646 (001) For Service Breakdown

1шт.

4

NSS

NOT SOLD SEPARAT

87515678 Reduction Gear

1шт.

REF

INSTRUCTION

See Figure(s) 32A00000647 (001) For Service Breakdown

1шт.

5

NSS

NOT SOLD SEPARAT

87516580 Brake Assy

2шт.

REF

INSTRUCTION

See Figure(s) 32A00000648 (001) For Service Breakdown

1шт.
