(30A00000136[001]) - SECTION INDEX, FRONT WHEEL HUB W/DRY BRAKE (89500425540)

Запчасти Case 327B (30A00000136[001]) - SECTION INDEX, FRONT WHEEL HUB W/DRY BRAKE (89500425540) (11) - AXLES/WHEELS

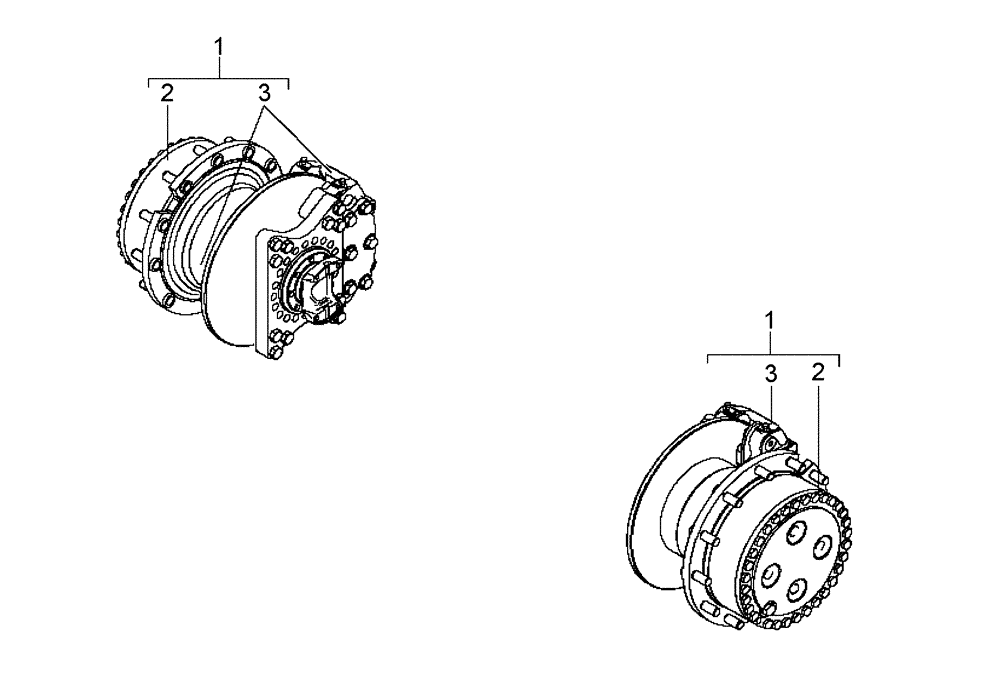

Схема запчастей Case 327B - (30A00000136[001]) - SECTION INDEX, FRONT WHEEL HUB W/DRY BRAKE (89500425540) (11) - AXLES/WHEELS
1
1
3
3
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

89500425540

HUB

Front Hub Assy W/Dry Brake; Replaces 89500416930 Hub Assy

2шт.

REF

INSTRUCTION

Include(s) 2,3

1шт.

2

NSS

NOT SOLD SEPARAT

87681196 Reduction Gear Assembly

1шт.

REF

INSTRUCTION

See Figure(s) 30A00000684 For Service Breakdown

1шт.

3

NSS

NOT SOLD SEPARAT

87580157 Brake Assembly Mounting

2шт.

REF

INSTRUCTION

See Figure(s) 30A00000665 For Service Breakdown

1шт.
