(30A00000060[001]) - SECTION INDEX, FRONT WHEEL HUB ASSY W/DRY BRAKE (89500416930)

Запчасти Case 327B (30A00000060[001]) - SECTION INDEX, FRONT WHEEL HUB ASSY W/DRY BRAKE (89500416930) (11) - AXLES/WHEELS

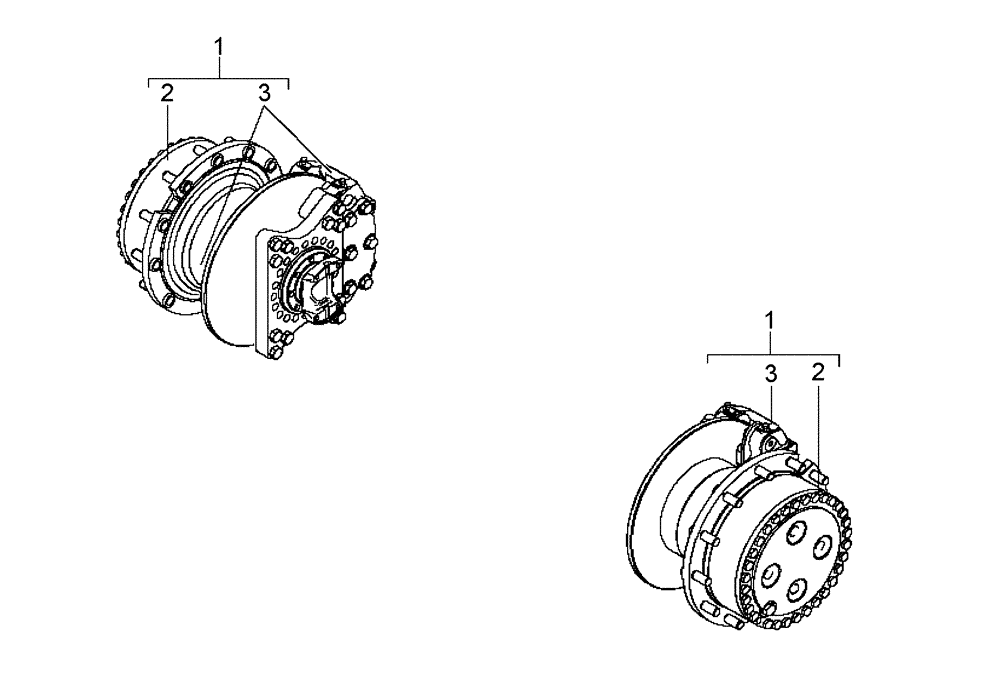

Схема запчастей Case 327B - (30A00000060[001]) - SECTION INDEX, FRONT WHEEL HUB ASSY W/DRY BRAKE (89500416930) (11) - AXLES/WHEELS
1
2
2
3
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

89500416930

HUB ASSY.

Front Wheel; Include(s) 2,3

2шт.

2

NSS

NOT SOLD SEPARAT

87515521 Reduction Gear Assembly

1шт.

REF

INSTRUCTION

See Figure(s) 30A00000664 (001) For Service Breakdown

1шт.

3

NSS

NOT SOLD SEPARAT

87580157 Brake Assembly Mounting

2шт.

REF

INSTRUCTION

See Figure(s) 30A00000665 (001) For Service Breakdown

1шт.
