(61A00000556[001]) - MUD GUARD ASSY, REAR (87581770)

Запчасти Case 327B (61A00000556[001]) - MUD GUARD ASSY, REAR (87581770) (10) - Cab/Cowlings

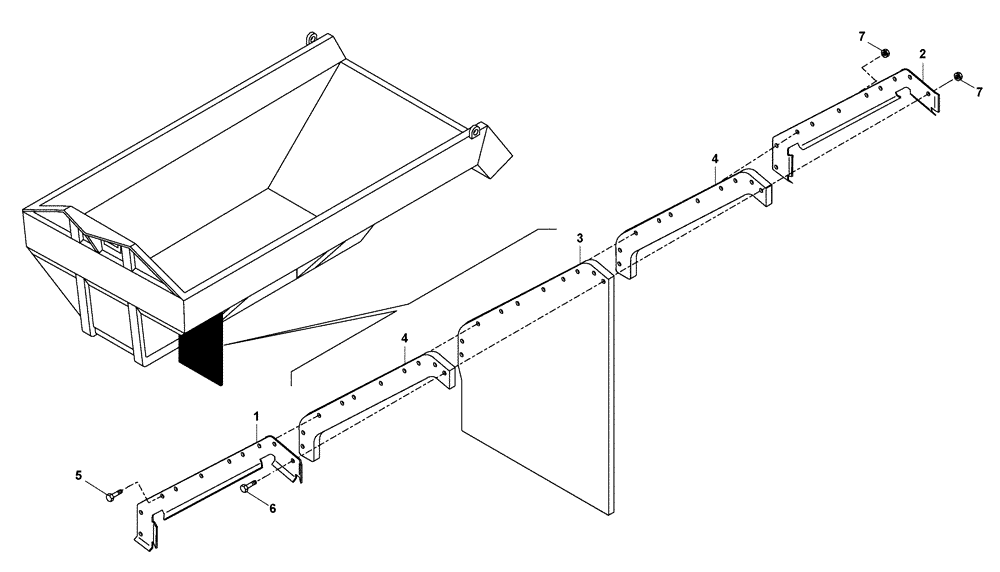

Схема запчастей Case 327B - (61A00000556[001]) - MUD GUARD ASSY, REAR (87581770) (10) - Cab/Cowlings
6
4
5
7
2
4
7
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

89500421361

PLATE

2шт.

2

89500421362

PLATE

2шт.

3

89500419865

MUDFLAP

2шт.

4

89500421369

PLATE

4шт.

5

8916586725

BOLT

M8 x 40; Replaces 8900056265 Screw M8 x 50 Used On Some Models

4шт.

6

8916586925

SCREW,M8 x 50mm

M8 x 50; Replaces 8900141335 Bolt M8 x 50 Used On Some Models

14шт.

7

8916984235

NUT

Replaces 8900016391 Nut, Self Locking Used On Some Models

18шт.

8

8900113172

WASHER

No Longer Required; Not Illustrated

36шт.
