Запчасти Case 327B (39A00000656[001]) - ROCKER ARMS, REAR SUSPENSION (87544245) (09) - Implement / Hydraulics / Frame / Brakes

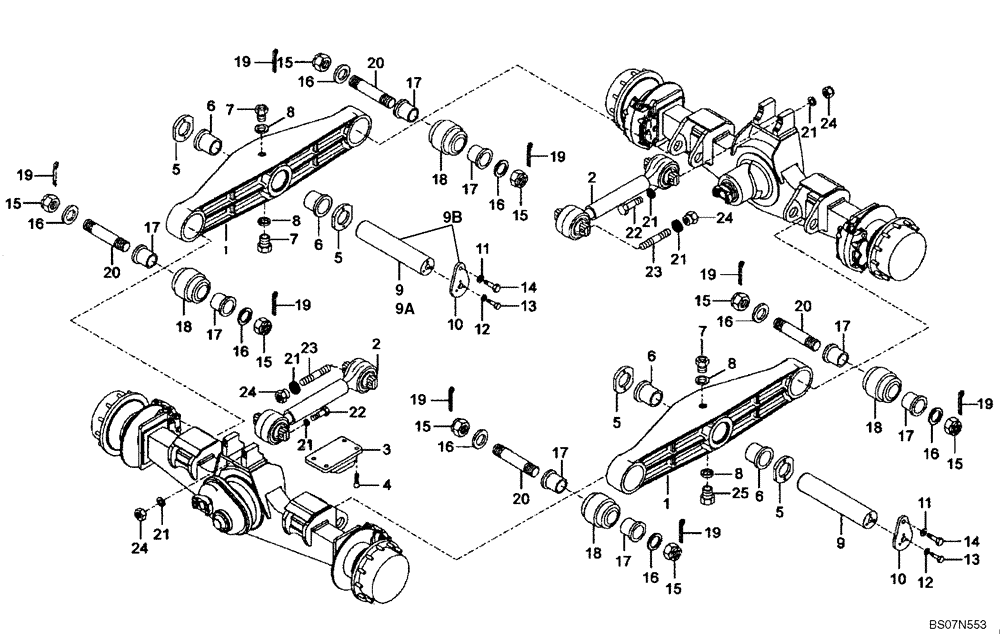

Схема запчастей Case 327B - (39A00000656[001]) - ROCKER ARMS, REAR SUSPENSION (87544245) (09) - Implement / Hydraulics / Frame / Brakes
13
17
18
8
15
15
11
8
5
16
19
14
16
19
17
21
8
21
6
15
5
24
5
22
12
20
10
6
1
10
7
1
8
19
21
12
16
9
15
21
18
25
17
6
18
17
9
24
16
17
11
14
15
19
24
18
13
19
19
21
17
23
24
6
7
22
2
20
3
2
20
15
20
7
23
5
16
9a
9b
4
16
15
21
17
19
19
15
16
16
17

Артикул

Название

Примечание

Количество

1

89500421191

ROCKER ARM

Replaces 8900186899 Arm, Rocker

2шт.

2

89500415312

TIE-ROD

2шт.

3

89500424563

RUBBER BLOCK

Replaces 89500407852 Pad, Buffer

4шт.

4

8900958408

SCREW

16шт.

5

89500418160

SCRAPER

If Used; Outer Diameter Has (2) Locating Flats 136mm Accross

4шт.

5

89500421176

SCRAPER

If Used; Inside Diameter Has a Single Locating Flat 95.5mm Accross

4шт.

6

89500421192

BUSHING

Replaces 89500418153 Bushing

4шт.

7

8900194860

PLUG

2шт.

8

8900157037

COPPER SEAL

4шт.

9

8900194847

PIN

If Used; Pin Is Round x 100mm In Diameter

2шт.

REF

INSTRUCTION

No Longer Serviced Separately Now Part Of Item 9B

1шт.

9a

89500421175

PIN

If Used; Pin Is Round With A Locating Flat Side Running Its Entire Length and is 95mm Accross

2шт.

REF

INSTRUCTION

No Longer Serviced Separately Now Part Of Item 9B

1шт.

9b

89500425186

PIN

PIN - PLATE ASSY

2шт.

10

89500425212

PLATE

Replaces 8900194850 Plate; Qty Was 1

1-2шт.

REF

INSTRUCTION

No Longer Serviced Separately Now Part Of Item 9B

1шт.

11

8900140552

COLLAR

2шт.

12

8900140473

WASHER

Qty Was 3

2-3шт.

13

8900194853

BOLT

Qty Was 3

2-3шт.

14

8900125740

BOLT

M20 x 40

2шт.

15

8960830052

NUT

8шт.

16

8960830051

WASHER

8шт.

17

8960830054

BUSHING

8шт.

18

8960320016

BUSHING

4шт.

19

8900005475

SPLIT PIN

Replaces 896080055 Pin

8шт.

20

8960830053

SHAFT

4шт.

21

8917093274

WASHER

12шт.

22

89500402619

BOLT,Hex, M24 x 2 x 210mm

4шт.

23

89500402625

STUD

4шт.

24

8917156531

NUT

8шт.

25

8900005449

PLUG

If Used Replaces 8900194860 Plug

2шт.

Выбрано товаров: 31
