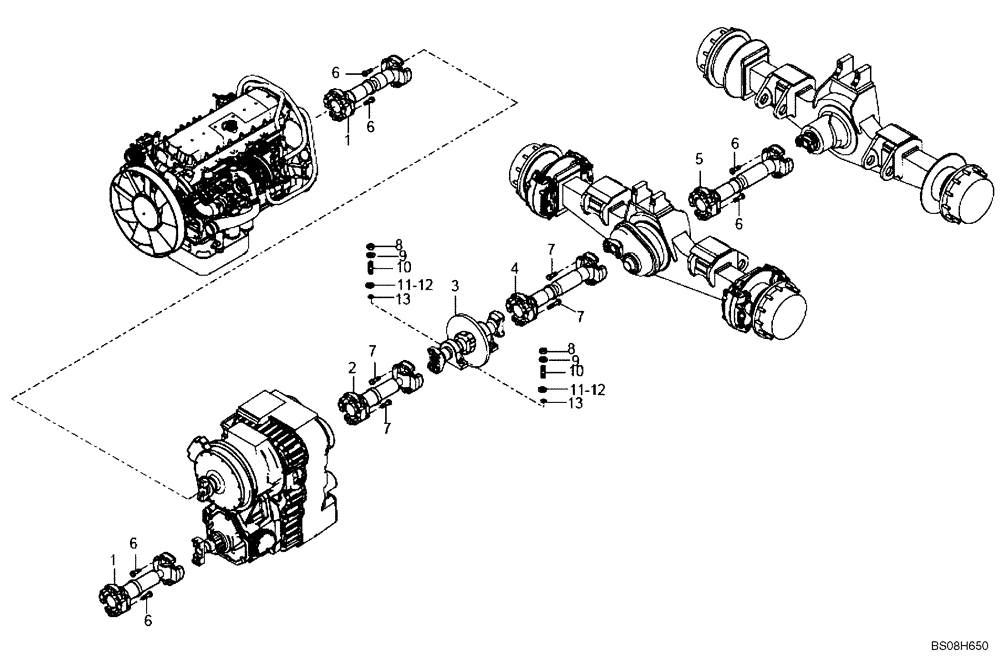

Запчасти Case 327B (24A00000764[001]) - SECTION INDEX, PROPELLER SHAFT INSTAL (P.I.N. HHD0327BN7PG57000 AND AFTER) (84147380) (03) - Converter / Transmission

REF

INSTRUCTION

Drive Shaft Installation (84147380)

1шт.

1

89500432106

DRIVE SHAFT

2шт.

1-1

301844A2

U-JOINT SPIDER

1шт.

2

89500423646

PROPELLER SHAFT

See Figure 24FG00000050 For Service Breakdown

1шт.

3

89500424390

DRIVE SHAFT

See Figure 24FG00000051 For Service Breakdown

1шт.

4

89500417278

PROPELLER SHAFT

See Figure 24FG00000052 For Service Breakdown

1шт.

5

89500417279

PROPELLER SHAFT

See Figure 24FG00000053 For Service Breakdown

1шт.

6

8900194261

BOLT

24шт.

7

8900194263

BOLT

16шт.

8

8917309831

NUT

M20

4шт.

9

8900140552

COLLAR

4шт.

10

8900154446

STUD

4шт.

11

8917096214

WASHER

Replaces 8900020014 Washer Flat

4шт.

12

89500422661

SHIM

4шт.

13

89500422662

SHIM

4шт.
