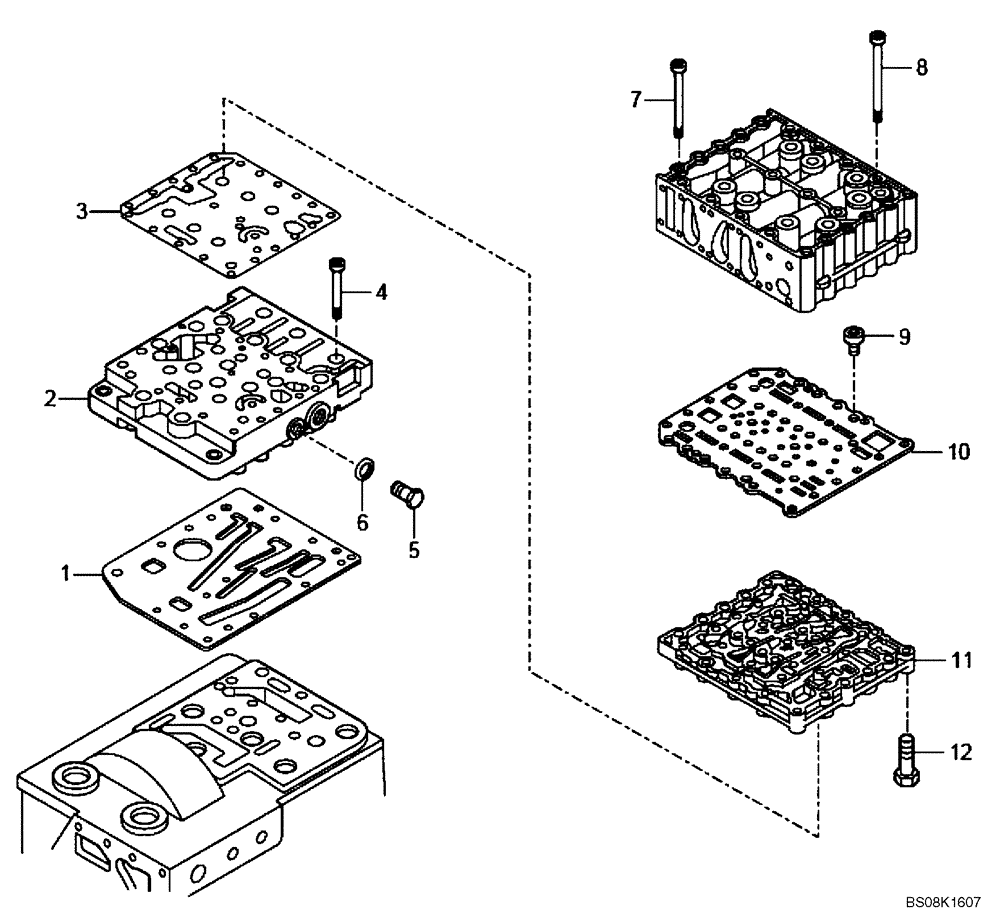

Запчасти Case 327B (18A00001005[001]) - GEARSHIFT SYSTEM (P.I.N. HHD0327BN7PG57000 AND AFTER) (84168873) (03) - Converter / Transmission

REF

INSTRUCTION

Gearshift System Instal (84168873)

1шт.

1

8605456

GASKET

Duct Plate

1шт.

2

8605457

PLATE

TCV Duct

1шт.

3

8900126947

GASKET

1шт.

4

8900126948

SCREW

20шт.

5

8603366

PLUG

Screw

9шт.

6

8603215

O-RING,8mm ID x 1.5mm Width

8 x 1.5

9шт.

7

8603182

SCREW,M6 x 76mm

M6 x 76

17шт.

8

8605458

SCREW,M6 x 100mm, Cl 10.9

Torx M6 x 100

6шт.

9

8603363

SCREEN

6шт.

10

87712667

PLATE

Sealing

1шт.

11

8603628

PLATE

Duct

1шт.

12

8603183

SCREW,M6 x 23mm, Cl 10.9

Cap M6 x 23 Class 10.9

18шт.
