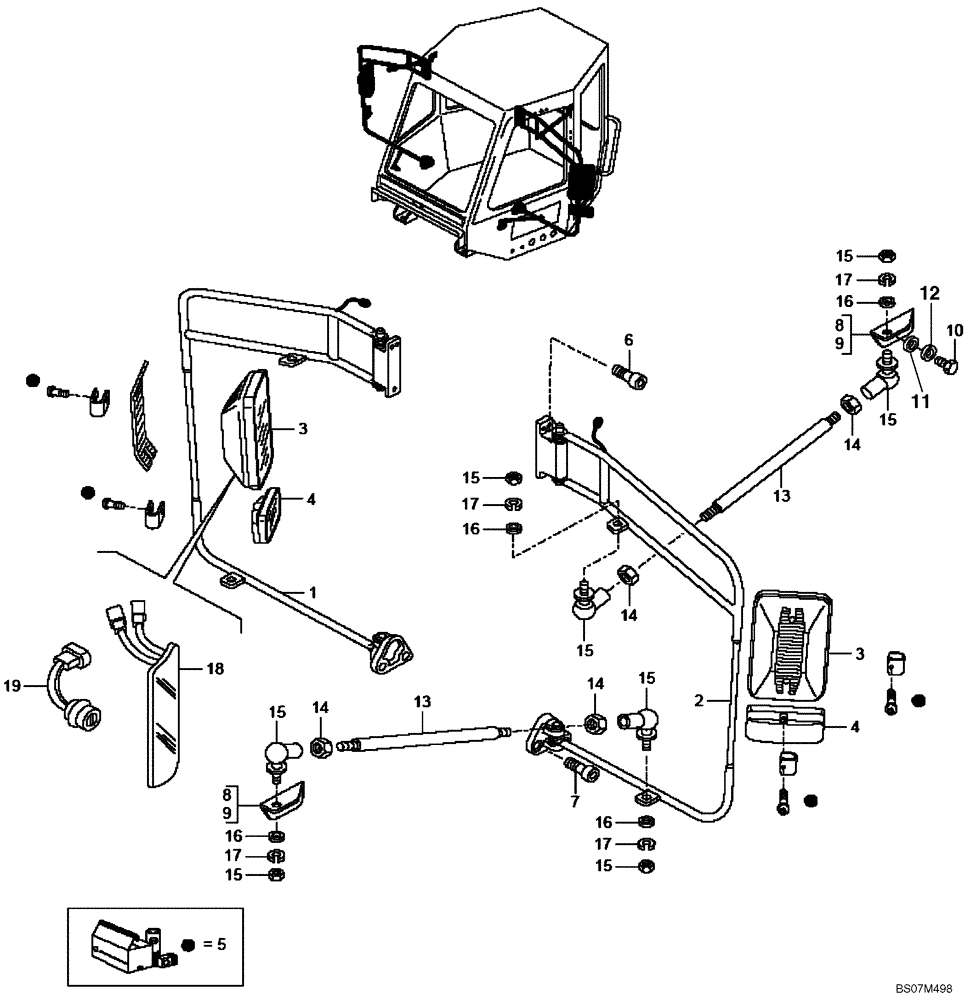

Запчасти Case 325 (9.652A[01]) - ROPS CAB - ELECTRICAL EXTERNAL DRIVING MIRRORS - OPTIONAL (87442835) (19) - OPTIONS

1

8900195484

BRACKET

1шт.

Right

1шт.

2

8900195483

BRACKET

1шт.

Left

1шт.

3

8900116836

REAR VIEW MIRROR

2шт.

4

8900116838

REAR VIEW MIRROR

1шт.

5

8900116878

KIT

1шт.

6

8916690577

BOLT,M8 x 20mm

M8 x 20 Replaces 8900127352 Bolt

6шт.

7

8900127353

BOLT

M6 x 20

4шт.

8

89500400417

BRACKET

2шт.

Serial Number : 330 NA HHD0000202, HHD0000203, HHD0000205 And After

1шт.

9

89500400418

BRACKET

2шт.

Serial Number : 330 NA HHD0000202, HHD0000203, HHD0000205 And After

1шт.

10

8900119056

SCREW

M6 x 16; Replaces 8916603777 Bolt M6 x 20 Used On Some Models

8шт.

Serial Number : 330 NA HHD0000202, HHD0000203, HHD0000205 And After

1шт.

11

8917094677

WASHER

If Used

8шт.

Serial Number : 330 NA HHD0000202, HHD0000203, HHD0000205 And After

1шт.

12

8900955275

LOCK WASHER

If Used

8шт.

Serial Number : 330 NA HHD0000202, HHD0000203, HHD0000205 And After

1шт.

13

89500400454

TIE-ROD

4шт.

Serial Number : 330 NA HHD0000202, HHD0000203, HHD0000205 And After

1шт.

14

8900113178

NUT

M8

8шт.

Serial Number : 330 NA HHD0000202, HHD0000203, HHD0000205 And After

1шт.

15

8900102023

BALL JOINT

Replaces 8900178860 Head

8шт.

Serial Number : 330 NA HHD0000202, HHD0000203, HHD0000205 And After

1шт.

16

8900002084

WASHER

8шт.

Serial Number : 330 NA HHD0000202, HHD0000203, HHD0000205 And After

1шт.

17

8900956220

LOCK WASHER

8шт.

Serial Number : 330 NA HHD0000202, HHD0000203, HHD0000205 And After

1шт.

18

8993190976

GLASS

If Used

2шт.

19

8993190972

CONTROL

If Used

2шт.
