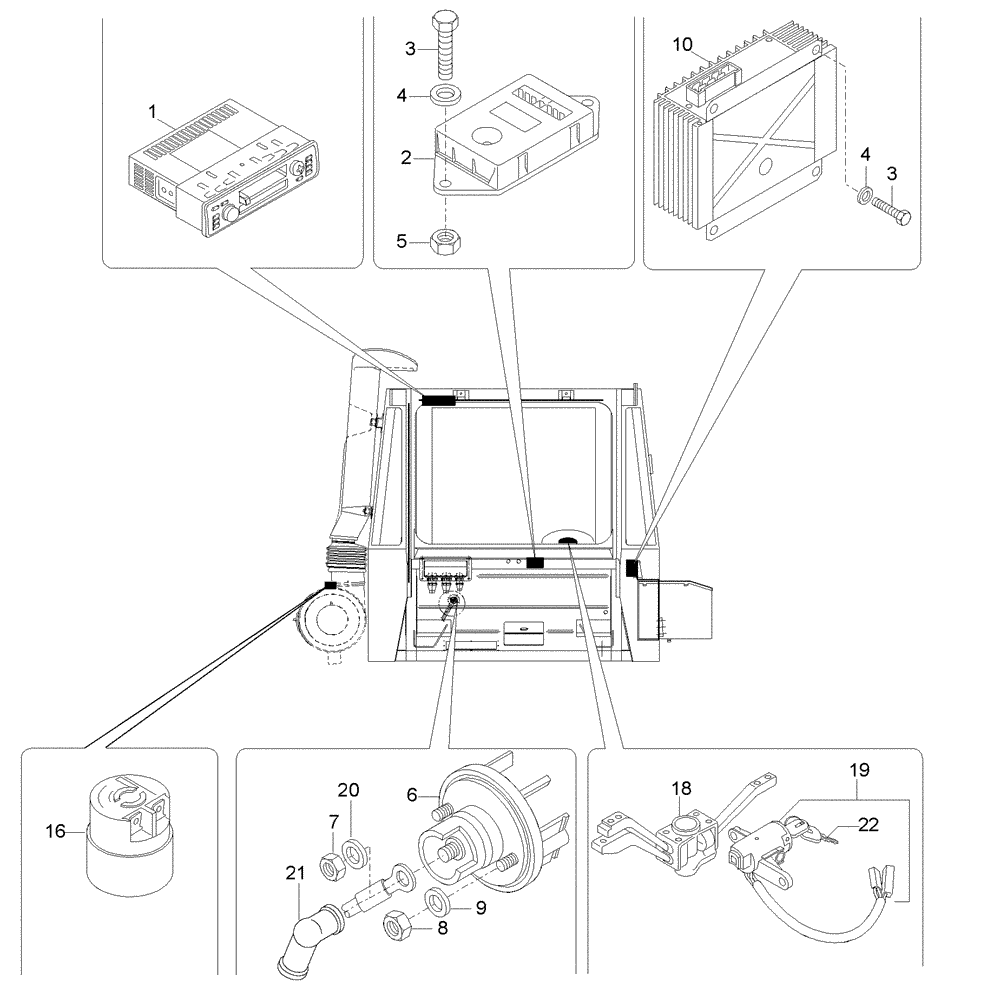

Запчасти Case 325 (6.720[04A]) - ELECTRIC COMPONENTS RADIO AND FLASHER (87449799) (13) - Electrical System / Decals

1

86994514

RADIO

1шт.

Optional

1шт.

2

8900122359

FLASHER UNIT

1шт.

F/R Turn Indicators

1шт.

3

8900140610

BOLT

M6 x 20

6шт.

4

8900141689

COLLAR

6

6шт.

5

8900140611

NUT

M6

2шт.

6

8900124540

POWER SOCKET

1шт.

Optional

1шт.

7

8900113178

NUT

M8 x 1.25

1шт.

8

8900140412

NUT

M5

4шт.

9

8917101334

SPRING WASHER

5

6шт.

10

8941200568

TRANSFORMER

1шт.

Voltage Reducer

1шт.

16

8900150811

INDICATOR

Air Cleaner Restriction

1шт.

18

8900124528

SWITCH

Combination; Incl. NSS Wire Leads for Horn Button, Wiper Switch, High Beam Light Switch, and Cluster Scrolling Controls

1шт.

19

8998491189

SWITCH

1шт.

With Keys

1шт.

20

8900141690

COLLAR

1шт.

21

8900142325

PROTECTION CAP

1шт.

22

8900120120

IGNITION KEY

Replaces 8900132300 Key Ignition

1шт.

23

89500406513

WIRE HARNESS

Radio

1шт.

Optional No Illustrated

1шт.
