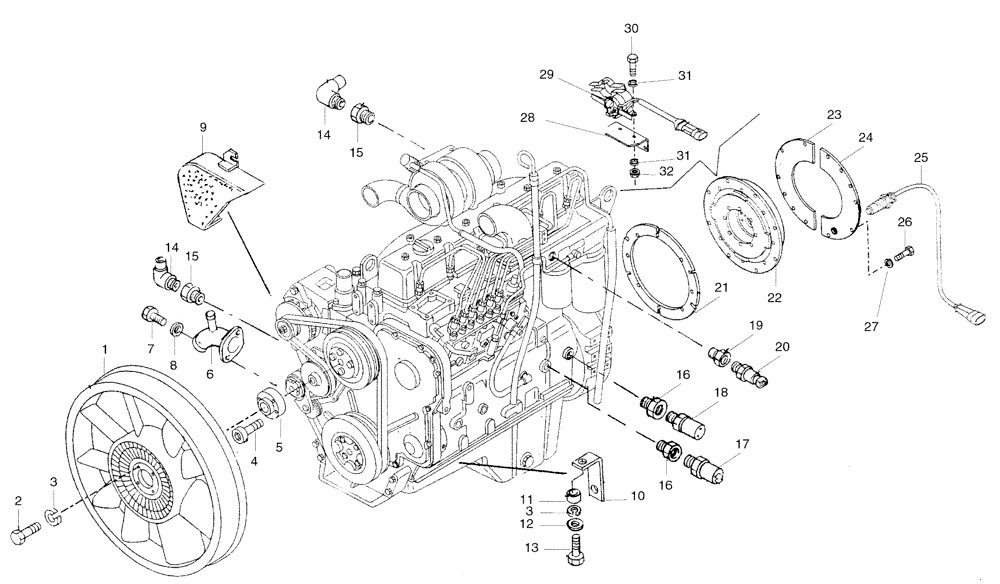

Запчасти Case 325 (0.083/1[01A]) - ENGINE - ACCESSORIES - FAN (87453154) (325 EU / 455275 AND AFTER) (325 NA PRIOR TO PIN HHD000110) (01) - ENGINE

1

8941213626

BLOWER

1шт.

2

8900140733

BOLT,M8 x 20mm

4шт.

3

8900956224

COLLAR

6шт.

4

8900003225

BOLT,M10 x 30mm

4шт.

5

89500403626

HUB

1шт.

6

89500403646

TUBE

1шт.

7

8900006309

BOLT,M8 x 20mm

2шт.

8

8900003220

LOCK WASHER

2шт.

9

89500421503

SHIELD

Replaces 89500404452 Guard

1шт.

10

8900176147

BRACKET

2шт.

11

8900176824

BUSHING

2шт.

12

8900113172

WASHER

2шт.

13

8900172961

BOLT

M8 x 30

2шт.

14

89500401755

HYD CONNECTOR

2шт.

15

89500401758

HYD CONNECTOR

2шт.

16

8900195390

ADAPTER

2шт.

17

8900955225

PRESSURE SWITCH

0.6-0.9 Bar, Engine Pressure Warning Light

1шт.

18

8900124126

TRANSMITTER

Engine Oil Pressure Gauge

1шт.

19

8900195391

ADAPTER

1шт.

20

8900140124

TRANSMITTER

1шт.

21

8900195228

ENGINE FLYWHEEL

1шт.

22

8960840003

COUPLING BLOCK

1шт.

23

89500417519

SHIELD

Replaces 8998196178 Shield

1шт.

Right

1шт.

24

89500417518

SHIELD

Replaces 8998196177 Shield

1шт.

Left

1шт.

25

8900957199

TRANSMITTER

1шт.

26

8900140488

BOLT

M10 x 1.5 x 25

12шт.

27

8900001049

LOCK WASHER

12шт.

28

8900195385

BRACKET

1шт.

29

8900124004

RELAY

24V-150

1шт.

30

8900140729

BOLT

M6 x 16

2шт.

31

8900140731

WASHER

4шт.

32

8900101322

NUT

M6

2шт.

NSS

NOT SOLD SEPARAT

Engine Oil Tube & Dipstick

1шт.

Not Serviced thru CNH - Contact Cummins with Engine S/N for Service Parts

1шт.
