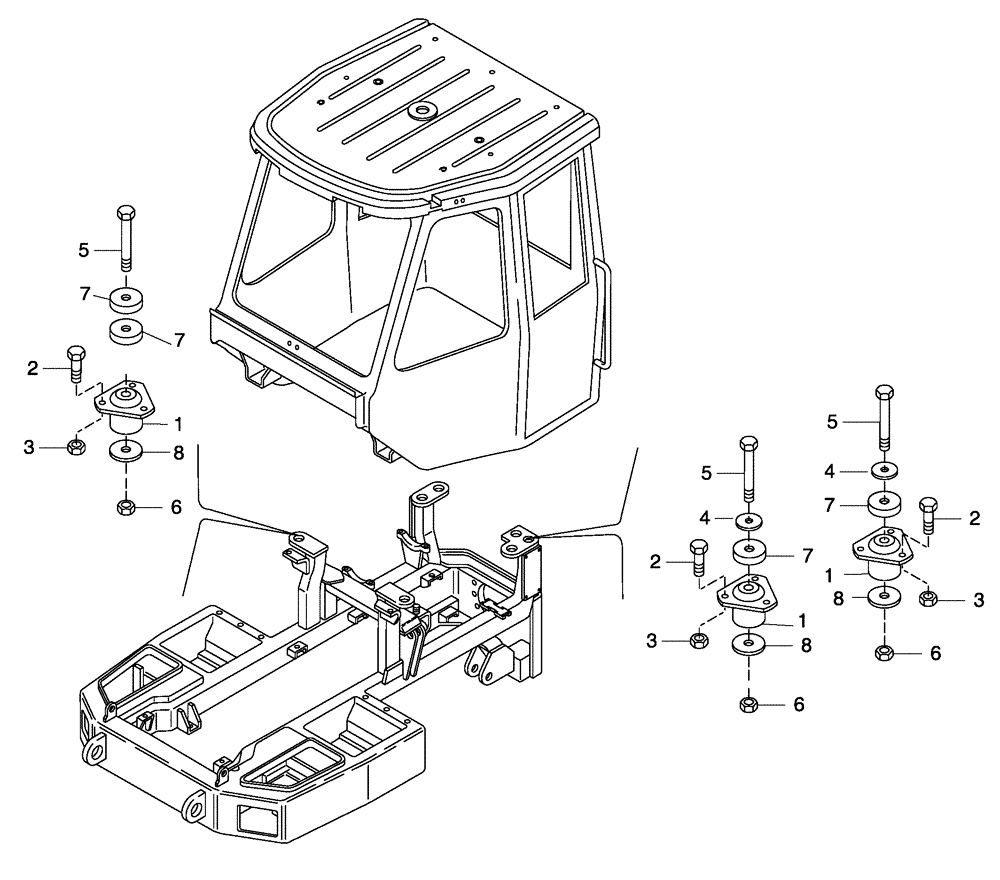

Запчасти Case 325 (5.652 [02]) - ROPS CAB - BELLOWS (87442842) (10) - Cab/Cowlings

1

8960320001

RUBBER PAD

6шт.

2

8900140778

BOLT,M12 x 40mm

M12 x 40 x 1,5

18шт.

3

8900141688

LOCK NUT

M12

18шт.

4

8900110597

WASHER

4шт.

5

8916635835

BOLT

Replaces 8916635834 Bolt M16 x 120

6шт.

6

8917309331

NUT

M16

6шт.

7

89500403058

SHIM

Qty Was 6; Replaces 8900188325 Washer Ref Item 9

6-8шт.

8

89500403059

SHIM

6шт.

9

8900188325

WASHER

No Longer Required; Not illustrated

2шт.
